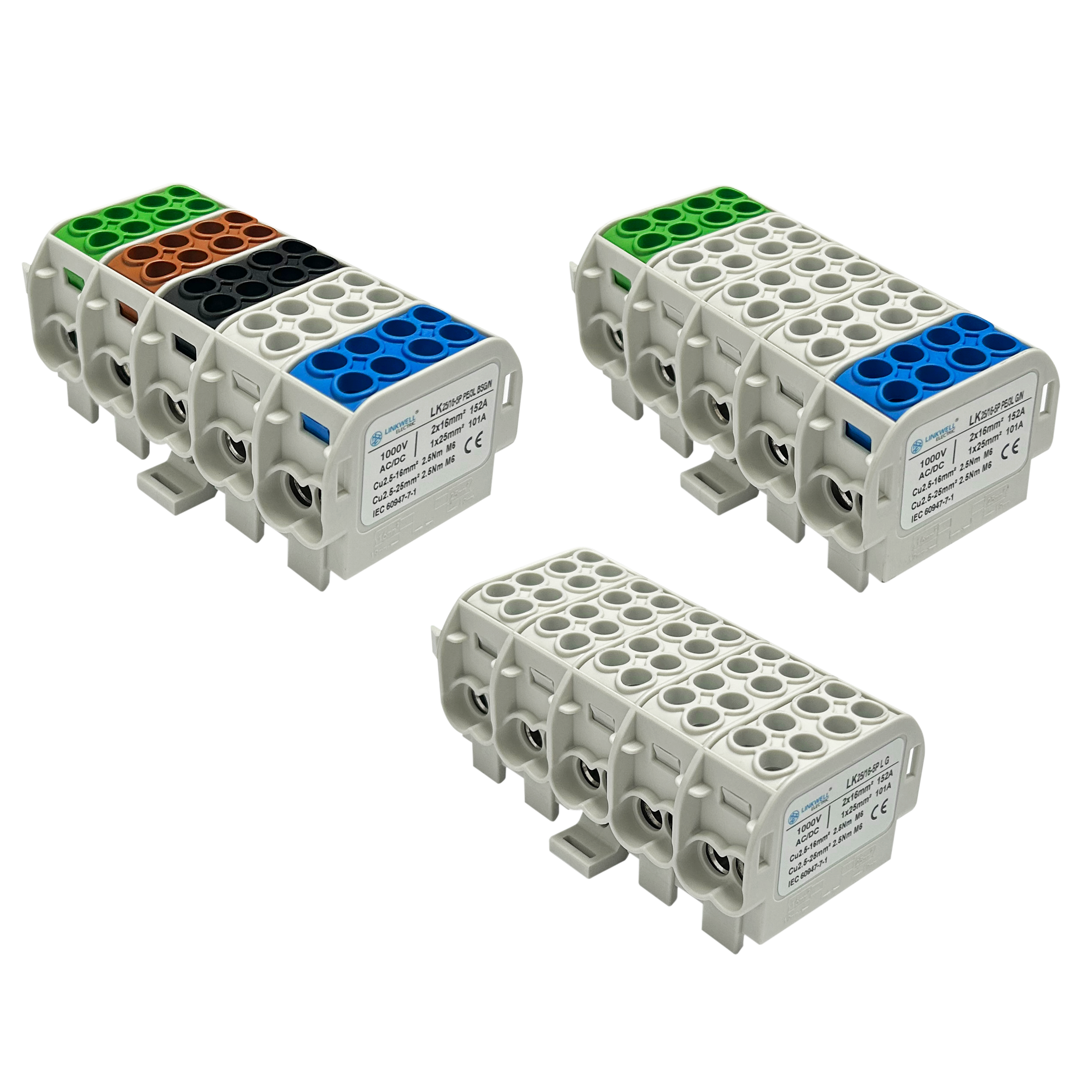

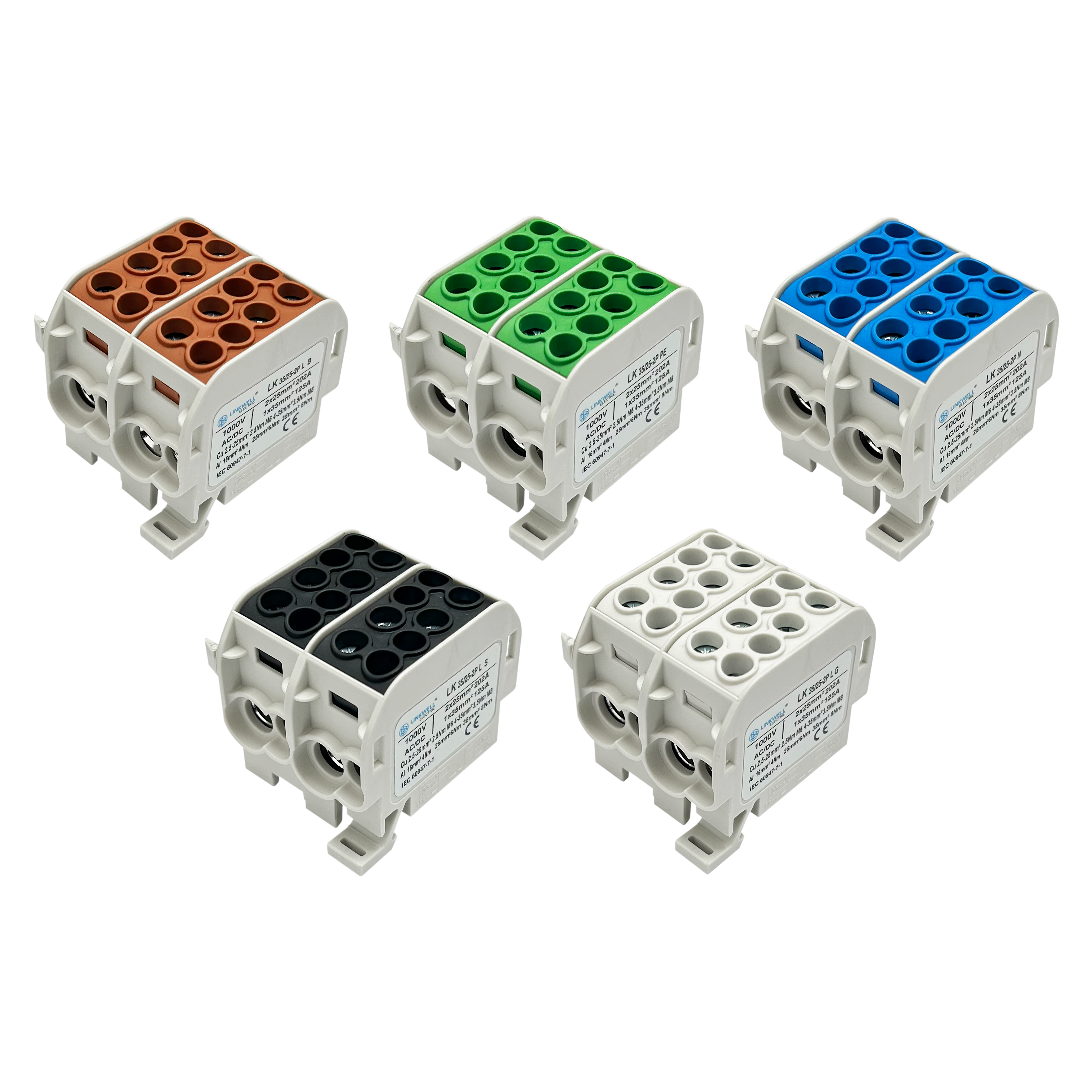

LK Universal Terminal

LK UNIVERSAL TERMINAL
Modular system
35mm DIN rail installation
User- defined stackable
Optional color- cover combination

Online Message File Download

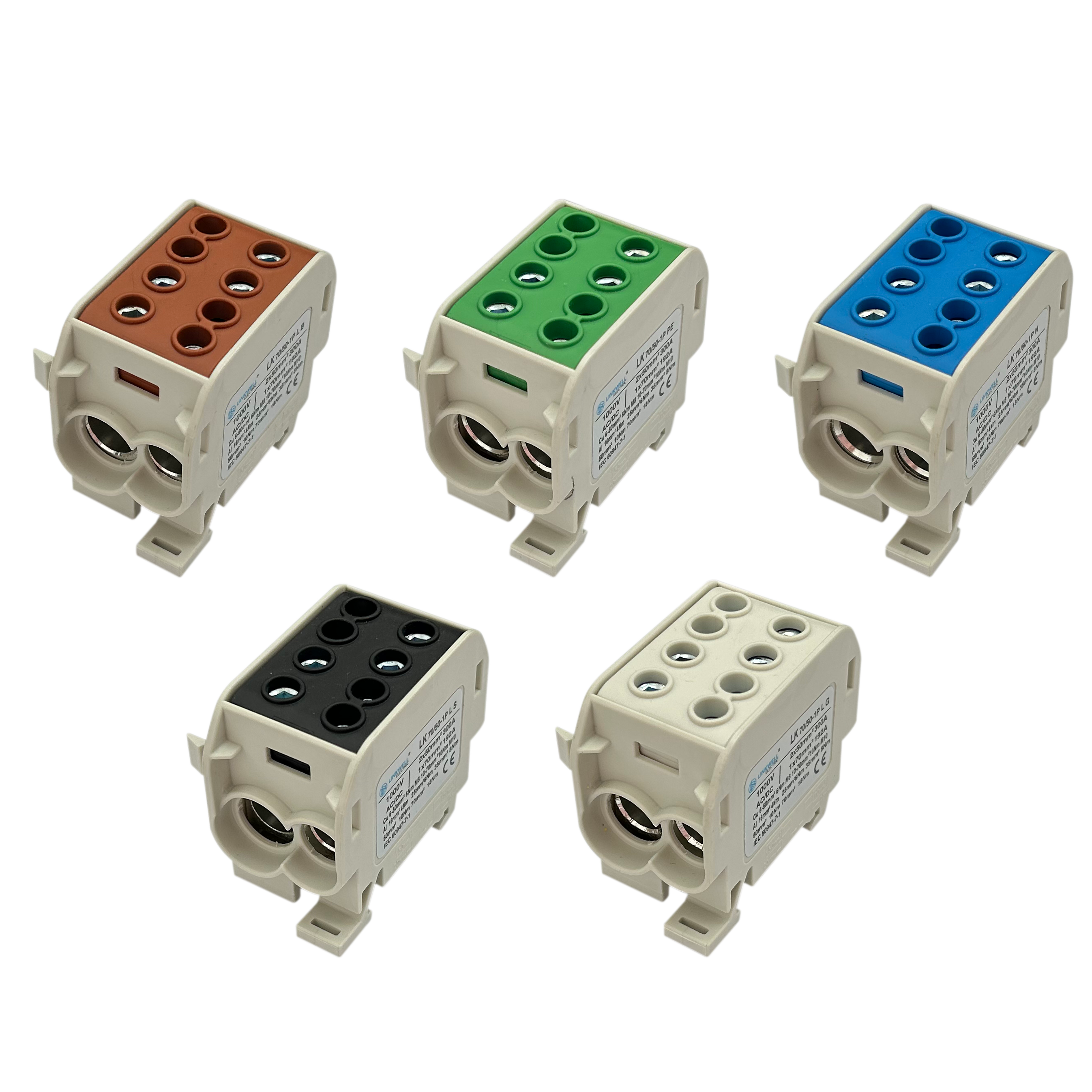

LK 25/16-1 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	20x39x52mm	2x16mm² 1x25mm²	1000 V AC/DC	152A Cu 101A AI	2.5Nm(2.5-16mm²) 2.5Nm(2.5-25mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

20x39x52mm

2x16mm²
1x25mm²

1000 V
AC/DC

152A Cu
101A AI

2.5Nm(2.5-16mm²)
2.5Nm(2.5-25mm²)

IEC 60947-7-1

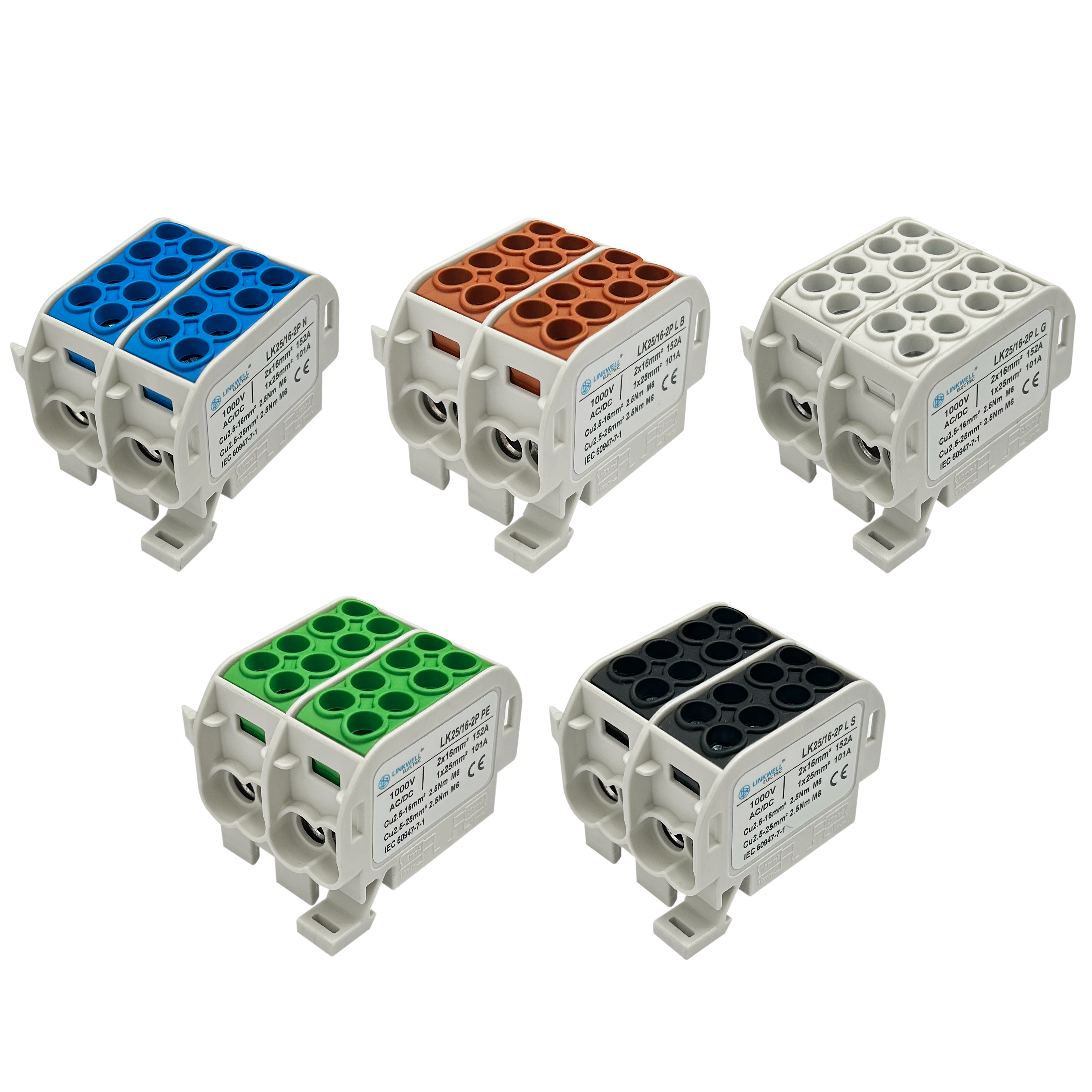

LK 25/16-2 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	38x39x53mm	2X16mm² 1X25mm²	1000 V AC/DC	152A Cu 101A AI	2.5Nm (2.5-1.6mm²) 2.5Nm (2.5-25mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

38x39x53mm

2X16mm²
1X25mm²

1000 V
AC/DC

152A Cu
101A AI

2.5Nm (2.5-1.6mm²)
2.5Nm (2.5-25mm²)

IEC 60947-7-1

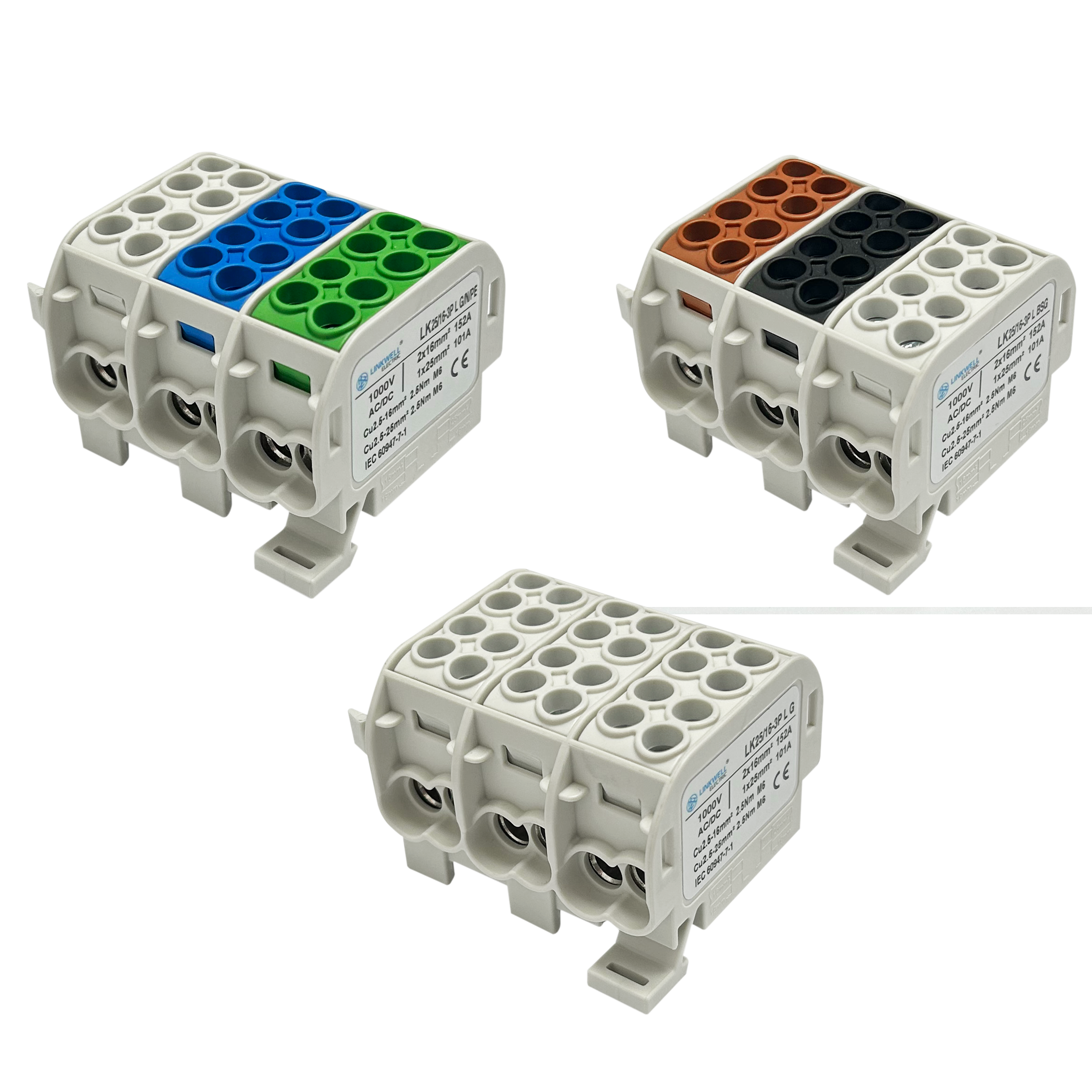

LK 25/16-3 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	58x39x53	2X16mm² 1X25mm²	1000 V AC/DC	152A Cu 101A AI	2.5Nm (2.5-1.6mm²) 2.5Nm (2.5-25mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

58x39x53

2X16mm²
1X25mm²

1000 V
AC/DC

152A Cu
101A AI

2.5Nm (2.5-1.6mm²)
2.5Nm (2.5-25mm²)

IEC 60947-7-1

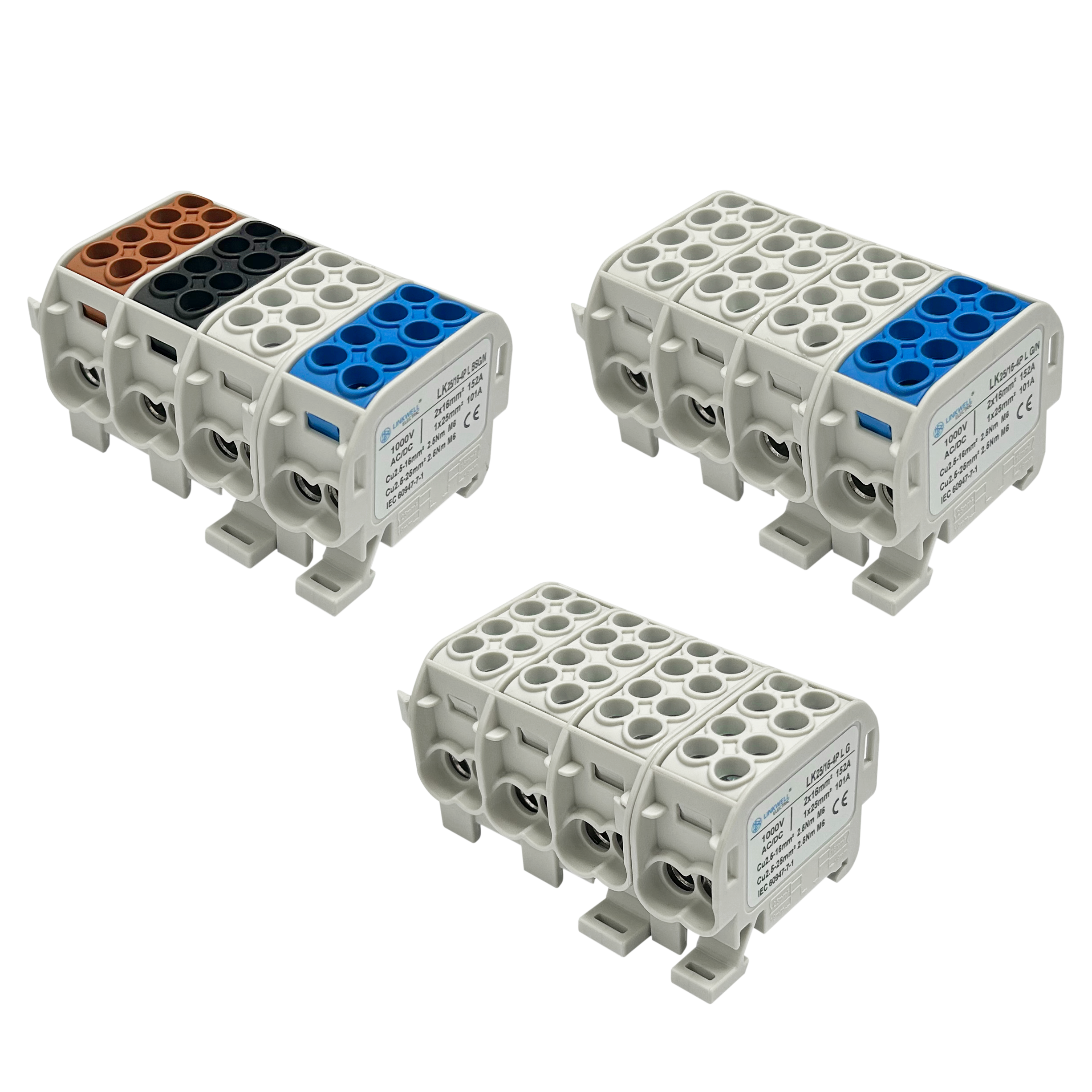

LK 25/16-4 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	79x39x53	2X16mm² 1X25mm²	1000 V AC/DC	152A Cu 101A AI	2.5Nm (2.5-1.6mm²) 2.5Nm (2.5-25mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

79x39x53

2X16mm²
1X25mm²

1000 V
AC/DC

152A Cu
101A AI

2.5Nm (2.5-1.6mm²)
2.5Nm (2.5-25mm²)

IEC 60947-7-1

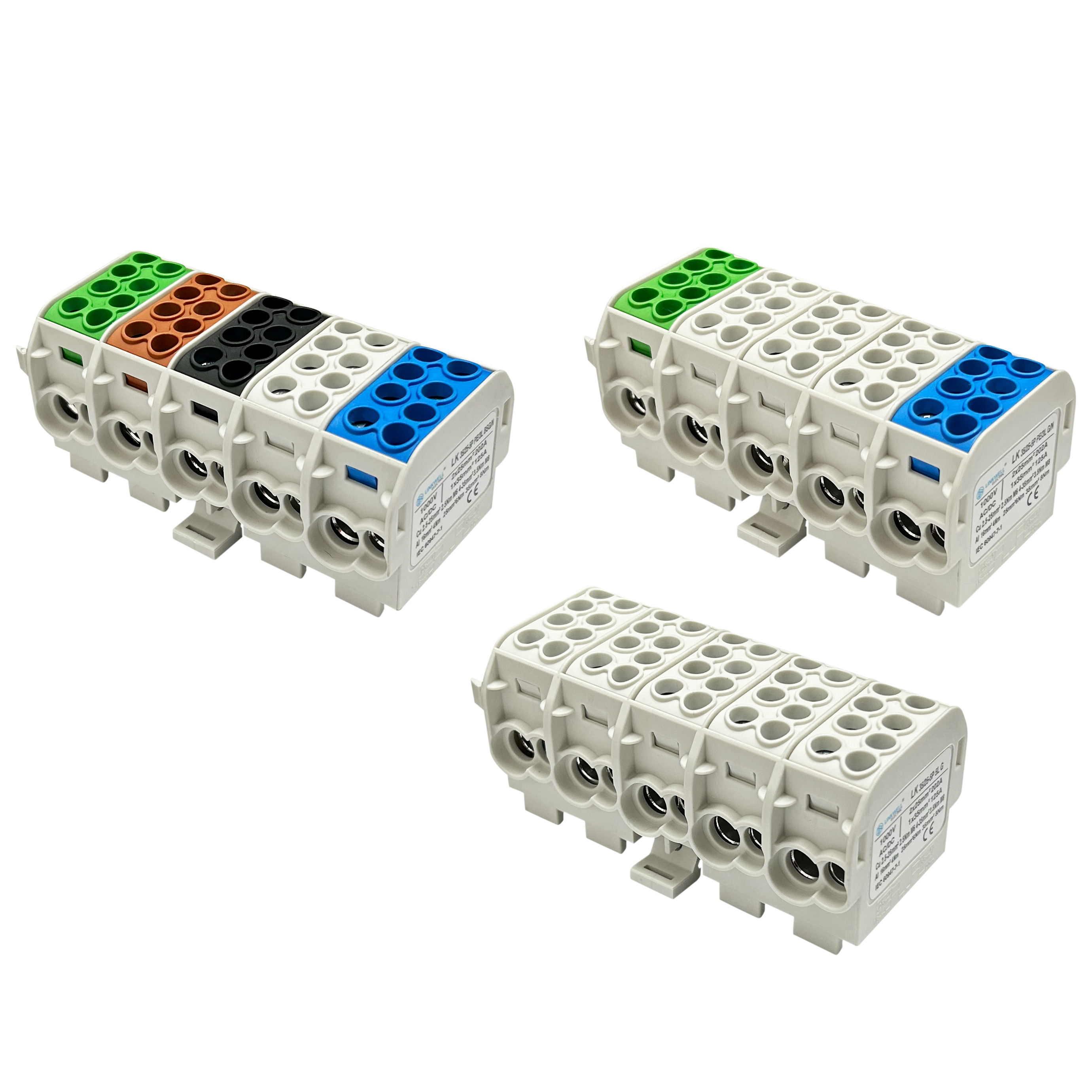

LK 25/16-5 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	97x39x53	2X16mm² 1X25mm²	1000 V AC/DC	152A Cu 101A AI	2.5Nm (2.5-1.6mm²) 2.5Nm (2.5-25mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

97x39x53

2X16mm²
1X25mm²

1000 V
AC/DC

152A Cu
101A AI

2.5Nm (2.5-1.6mm²)
2.5Nm (2.5-25mm²)

IEC 60947-7-1

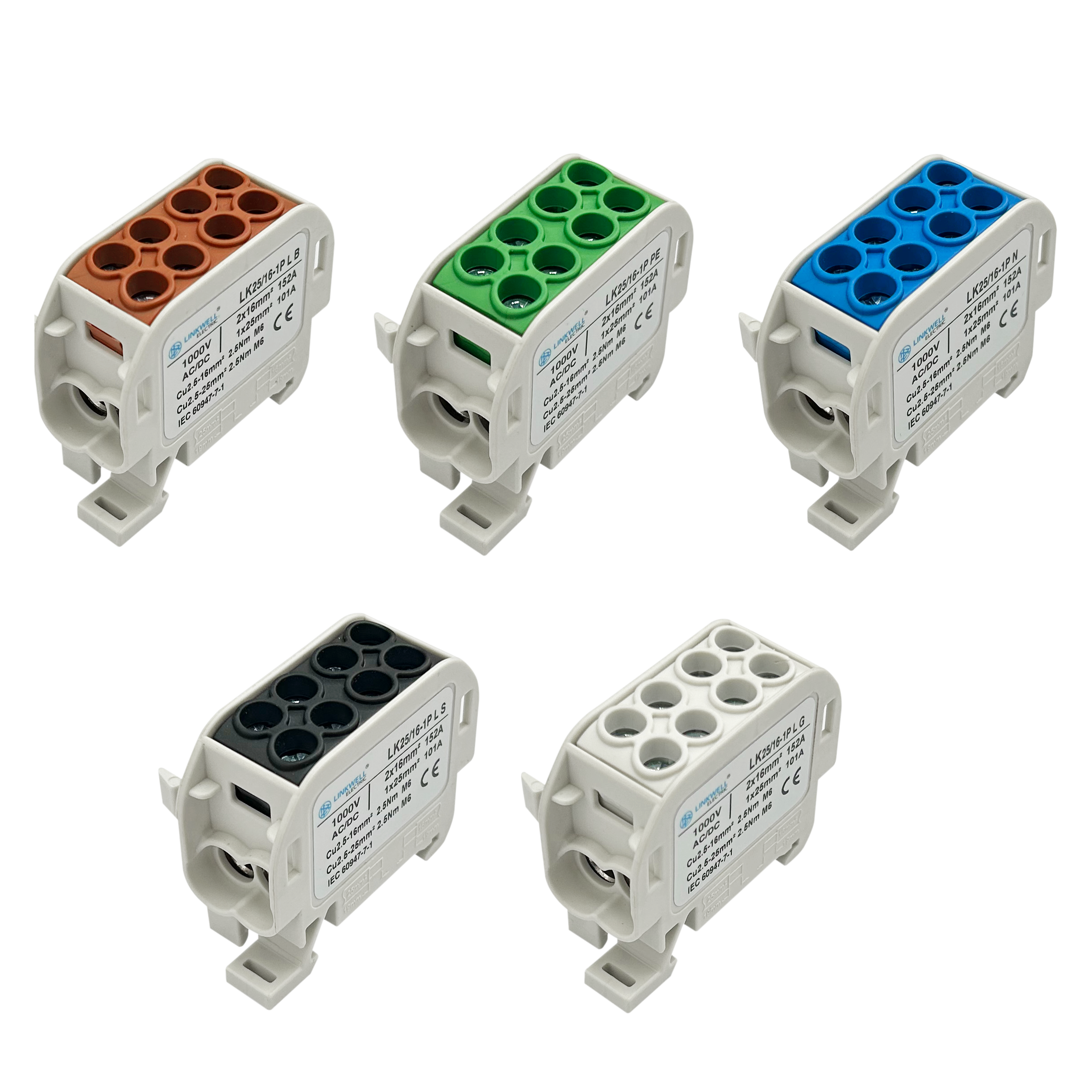

LK 35/25-1 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	22x44x53	2X25mm² 1X35mm²	1000 V AC/DC	202A Cu 125A AI	2.5Nm (2.5-25mm²) 3.5Nm (4-35mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

22x44x53

2X25mm²
1X35mm²

1000 V
AC/DC

202A Cu
125A AI

2.5Nm (2.5-25mm²)

3.5Nm (4-35mm²)

IEC 60947-7-1

LK 35/25-2 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	43.5x44x53	2X25mm² 1X35mm²	1000 V AC/DC	202A Cu 125A AI	2.5Nm (2.5-25mm²) 3.5Nm (4-35mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

43.5x44x53

2X25mm²
1X35mm²

1000 V
AC/DC

202A Cu
125A AI

2.5Nm (2.5-25mm²)

3.5Nm (4-35mm²)

IEC 60947-7-1

LK 35/25-3 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	43.5x44x53	2X25mm² 1X35mm²	1000 V AC/DC	202A Cu 125A AI	2.5Nm (2.5-25mm²) 3.5Nm (4-35mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

43.5x44x53

2X25mm²
1X35mm²

1000 V
AC/DC

202A Cu
125A AI

2.5Nm (2.5-25mm²)

3.5Nm (4-35mm²)

IEC 60947-7-1

LK 35/25-4 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	107x44x53	2X25mm² 1X35mm²	1000 V AC/DC	202A Cu 125A AI	2.5Nm (2.5-25mm²) 3.5Nm (4-35mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

107x44x53

2X25mm²
1X35mm²

1000 V
AC/DC

202A Cu
125A AI

2.5Nm (2.5-25mm²)

3.5Nm (4-35mm²)

IEC 60947-7-1

LK 35/25-5 pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	107x44x53	2X25mm² 1X35mm²	1000 V AC/DC	202A Cu 125A AI	2.5Nm (2.5-25mm²) 3.5Nm (4-35mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

107x44x53

2X25mm²
1X35mm²

1000 V
AC/DC

202A Cu
125A AI

2.5Nm (2.5-25mm²)

3.5Nm (4-35mm²)

IEC 60947-7-1

LK 70/50-1pole

Picture	Outline Dimensions	Conductor	Nominal voltage	Nominal current	Tightenig torque	Standards
	33x45x60	2X50mm² 1X70mm²	1000 V AC/DC	300A Cu 192A AI	2.5Nm (2.5-1.6mm²) 3.5Nm (4-35mm²)	IEC 60947-7-1 CE


Outline
Dimensions

Conductor

Nominal
voltage

Nominal
current

Tightenig torque

Standards

33x45x60

2X50mm²
1X70mm²

1000 V
AC/DC

300A Cu
192A AI

2.5Nm (2.5-1.6mm²)
3.5Nm (4-35mm²)

IEC 60947-7-1
