4 Pole Terminal box

Compact space and highest capacitySafe and easy electric connection.Protection: Transparent cover.
Snap-on DIN Rail or mount to panel with screws
Confirm to ROHS
lcc up to 35KA
Voltage: 690V:
Color: clear/grey color.

Online Message File Download

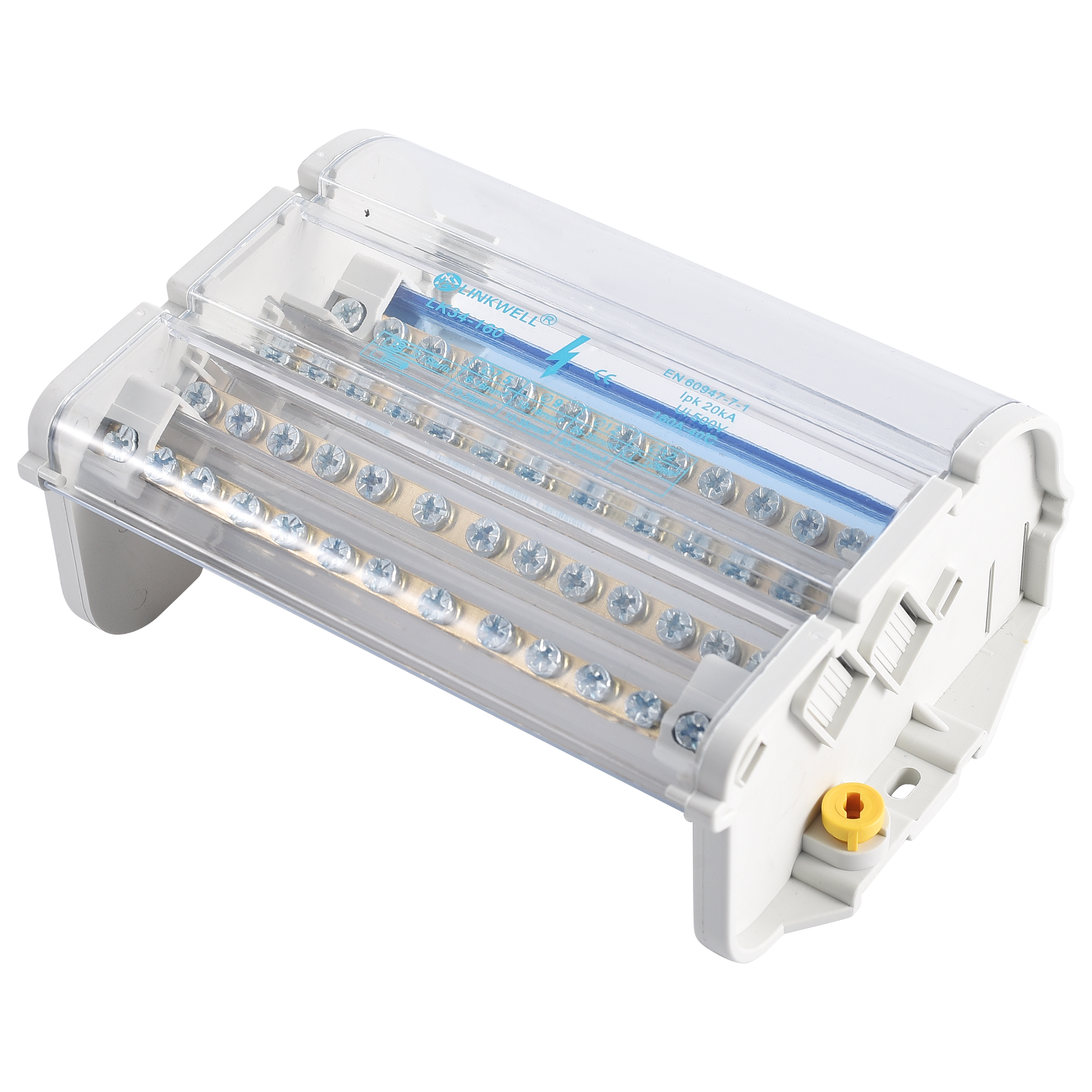

LK34-160

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	180x138x74	160	500V	4	1x120+4x80+8x65	20	500


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

180x138x74

160

500V

1x120+4x80+8x65

500

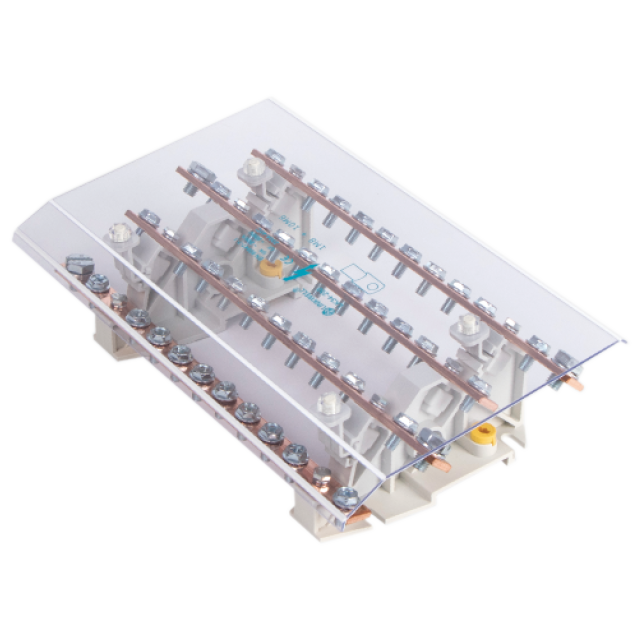

LK34-1256

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	182x170x77	125	660	4	5xM6+1xM8	48	6


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

182x170x77

125

660

5xM6+1xM8

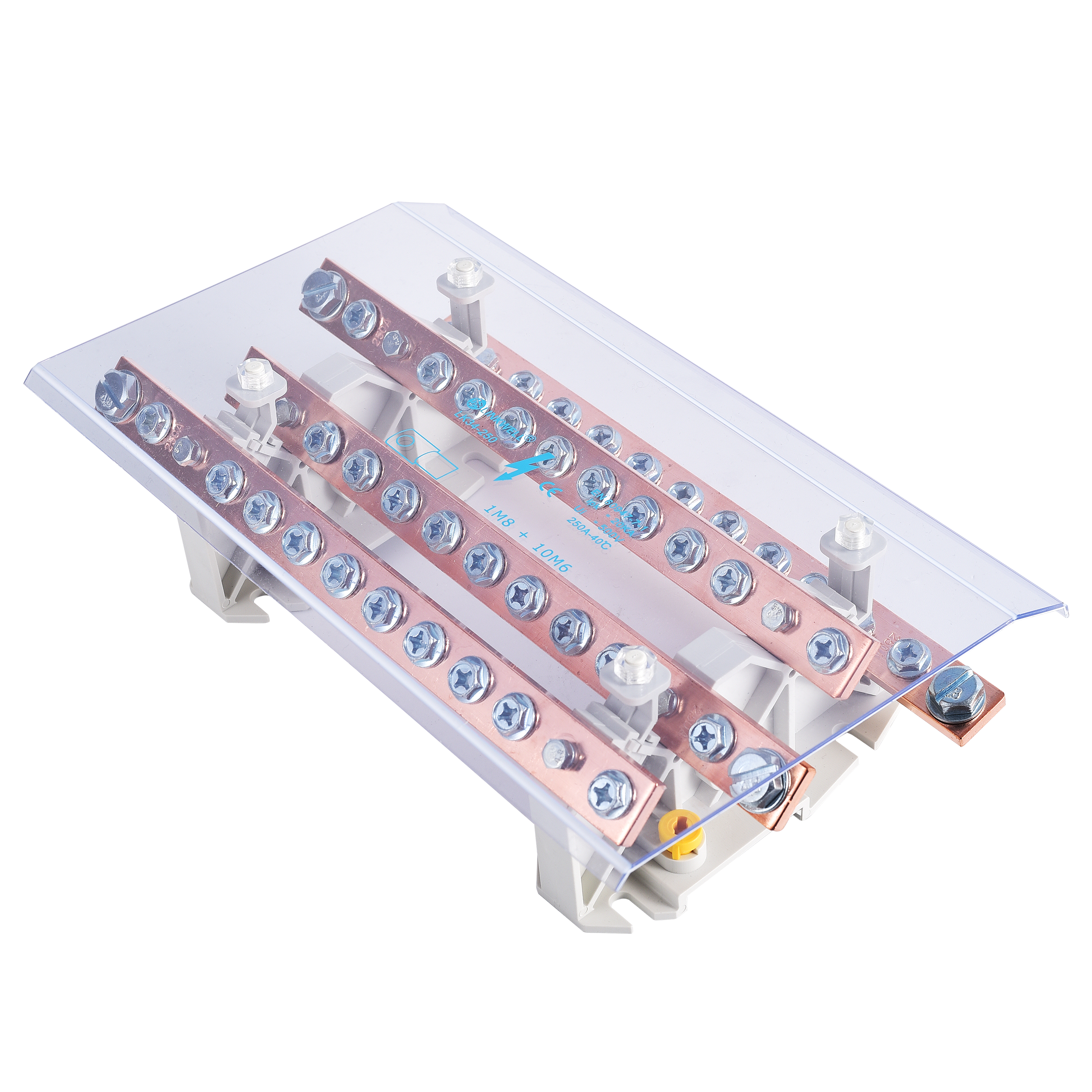

LK34-12511

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	280x170x77	125	660	4	10xM6+1xM8	30	6


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

280x170x77

125

660

10xM6+1xM8

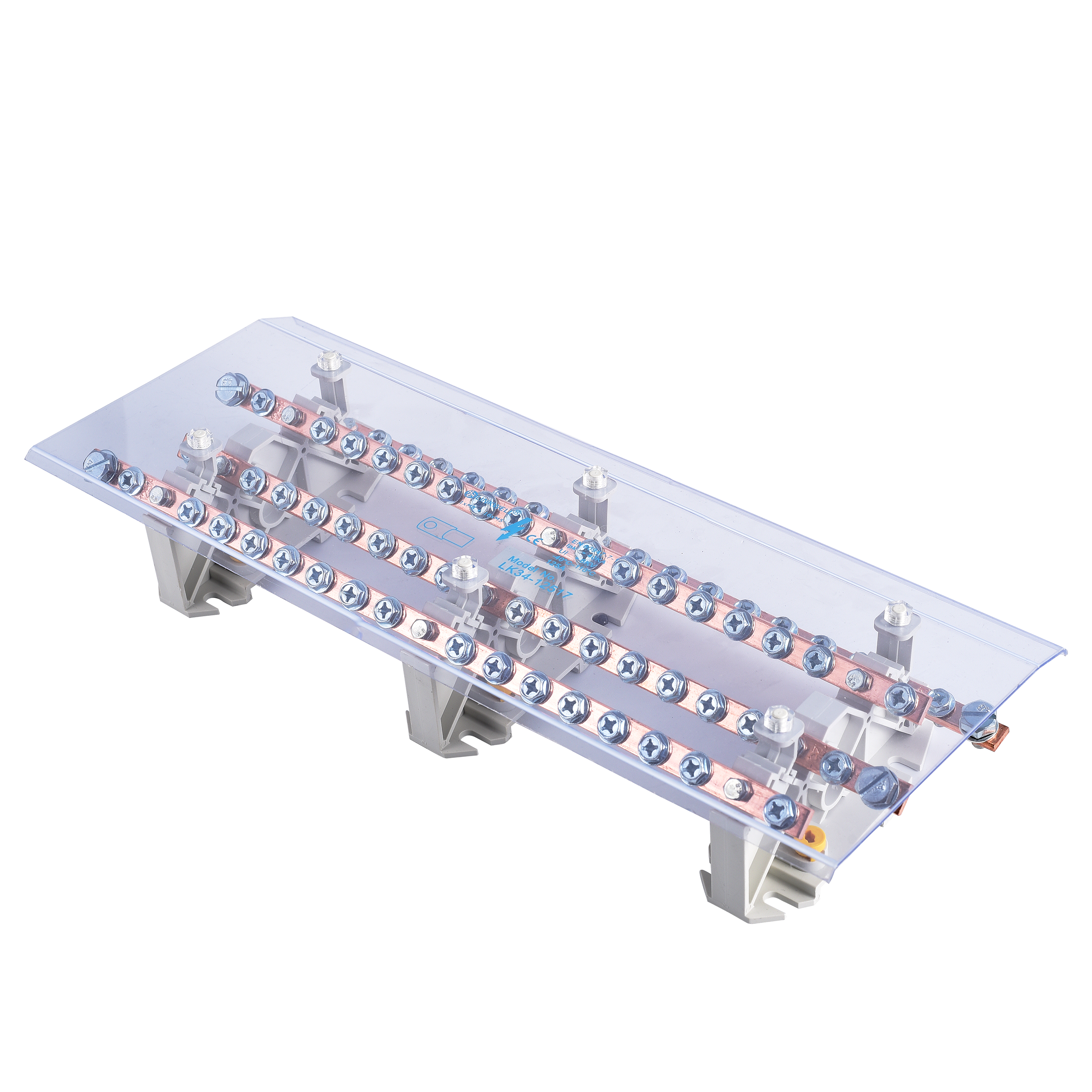

LK34-12517

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	420x170x77	125	660	4	16xM6+1xM8	40	6


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

420x170x77

125

660

16xM6+1xM8

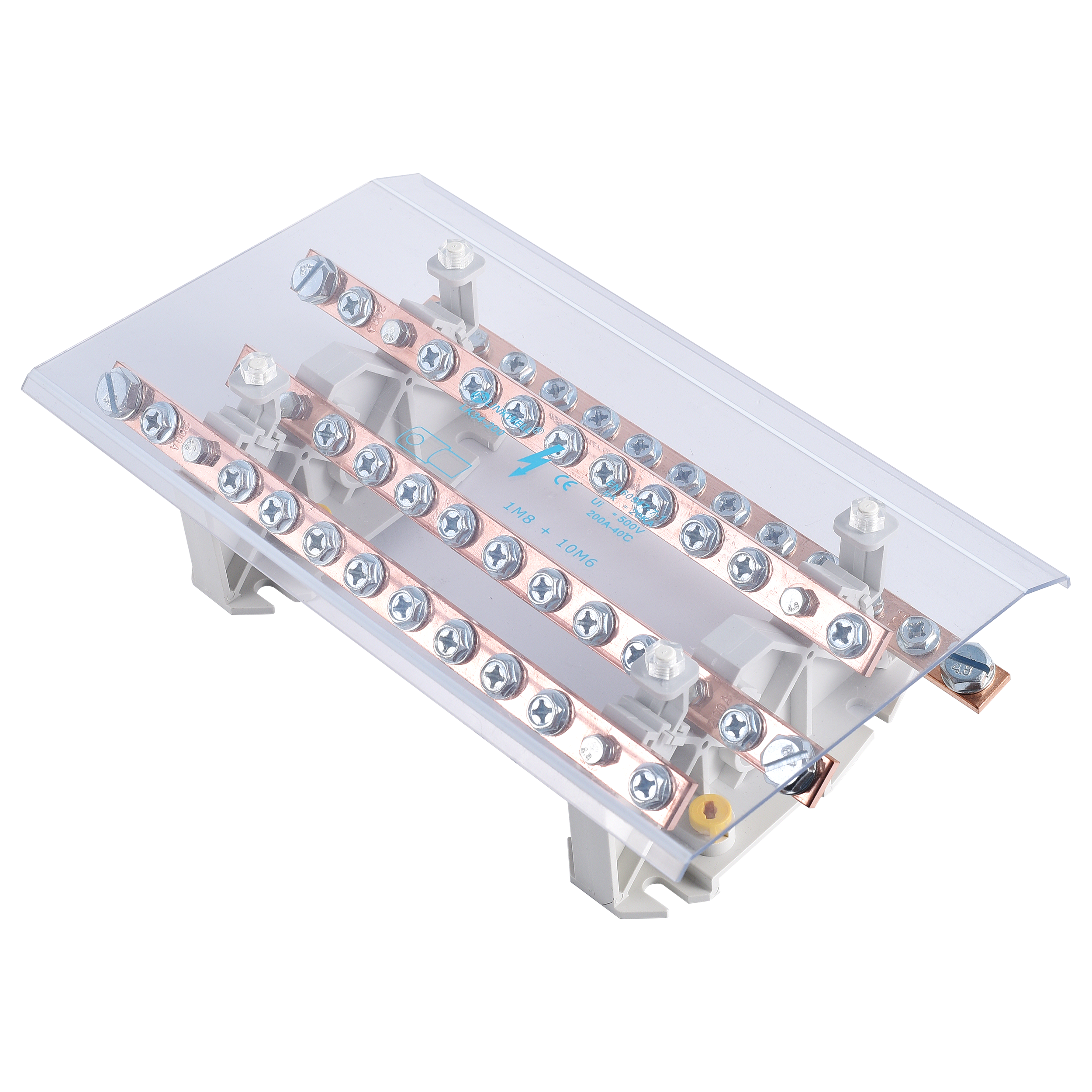

LK34-20011

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	280x170x77	200	660	4	10xM6+1xM8	30	6


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

280x170x77

200

660

10xM6+1xM8

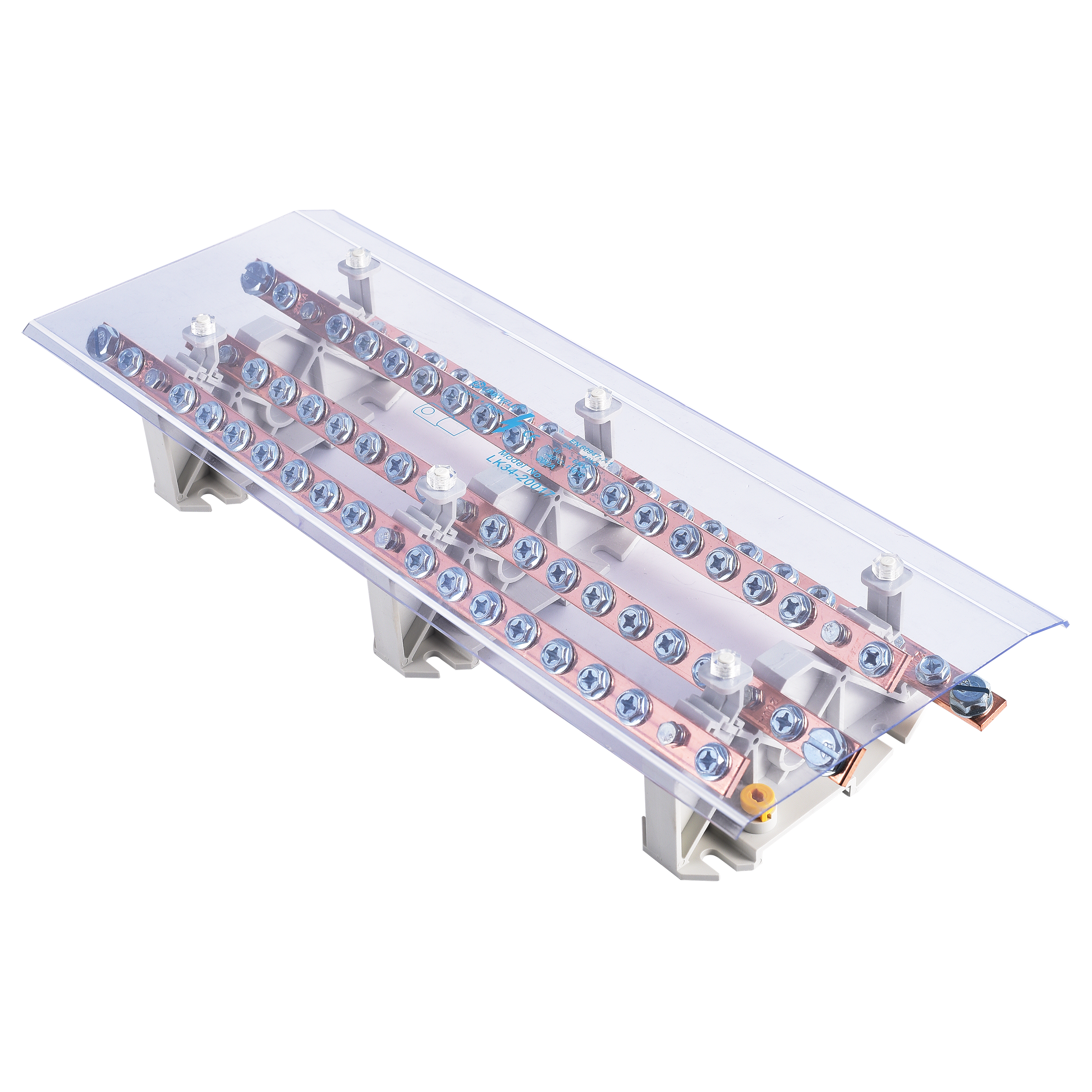

LK34-20017

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	420x170x77	200	660	4	16xM6+1xM8	40	6


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

420x170x77

200

660

16xM6+1xM8

LK34-25011

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	280x170x77	250	660	4	10xM6+1xM8	30	8


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

280x170x77

250

660

10xM6+1xM8

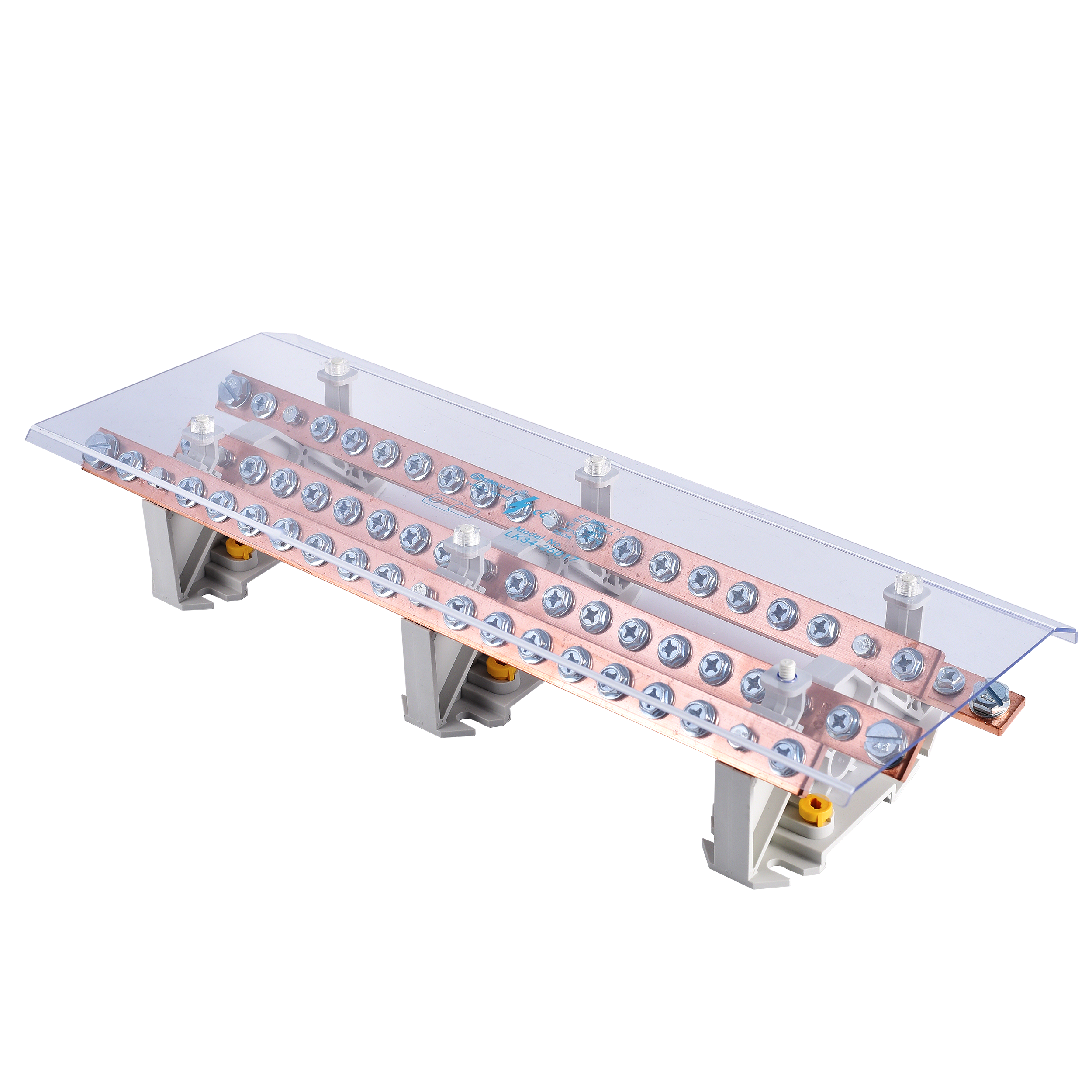

LK34-25017

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	420x170x77	250	660	4	16xM6+1xM8	40	8


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

420x170x77

250

660

16xM6+1xM8

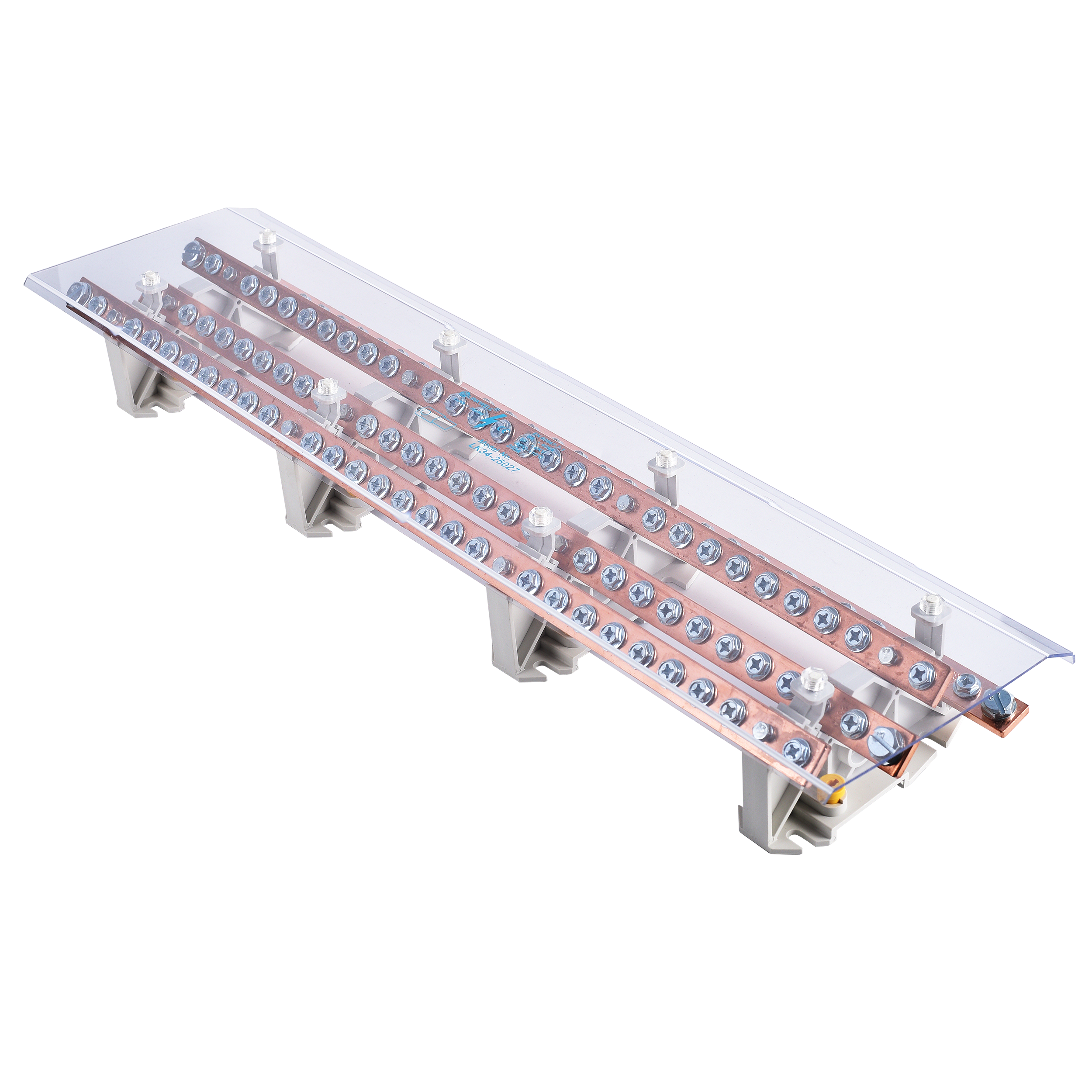

LK34-25027

Picture	Outline Dimensions （mm)	Rated Current (A)	Nominal Voltage (V)	Phase	In/Out	IPK KA	Vimp KV
	630x170x77	400	660	4	26xM6+1xM8	40	8


Outline
Dimensions

（mm)

Rated Current

(A)

Nominal Voltage

(V)

Phase

In/Out

IPK
KA

Vimp
KV

630x170x77

400

660

26xM6+1xM8
