UK SERIES multipole distribution terminal blocks

Minimum space for maximum power
Easy connections :Input separated from Outputs
Protection: Transparent cover
Self extinguishing material : VO
New Design: Solid brass provide more reliability
Din rail Mounting
Wiring with or without ferrule terminal lnsulation between phases

Online Message File Download

UK207

Picture	Overall Dimensions	Current	Voltage	Flame retardant grade	Number of terminals/pole	Wire	Authentication
	93x50x51.5 （mm)	125A	500V	UL94-V0	2-pole	1.5-6mm² 6-16mm²	CE/RoHS


Overall Dimensions

Current

Voltage

Flame retardant grade

Number of terminals/pole

Wire

Authentication

93x50x51.5

（mm)

125A

500V

UL94-V0

2-pole

1.5-6mm²

6-16mm²

CE/RoHS

UK211

Picture	Overall Dimensions	Current	Voltage	Flame retardant grade	Number of terminals/pole	Wire	Authentication
	131×51.5×50.5 （mm)	125A	500V	UL94-V0	2-pole	1.5-6mm² ; 6-16mm² ; 10-16mm² ; 10-25mm² ; 10-35mm²	CE/RoHS


Overall Dimensions

Current

Voltage

Flame retardant grade

Number of terminals/pole

Wire

Authentication

131×51.5×50.5

（mm)

125A

500V

UL94-V0

2-pole

1.5-6mm² ; 6-16mm² ; 10-16mm² ; 10-25mm² ; 10-35mm²

CE/RoHS

UK215

Picture	Overall Dimensions	Current	Voltage	Flame retardant grade	Number of terminals/pole	Wire	Authentication
	166×51.5×50.5 （mm)	125A	500V	UL94-V0	2-pole	1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ; 10-35mm²	CE/RoHS


Overall Dimensions

Current

Voltage

Flame retardant grade

Number of terminals/pole

Wire

Authentication

166×51.5×50.5

（mm)

125A

500V

UL94-V0

2-pole

1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ; 10-35mm²

CE/RoHS

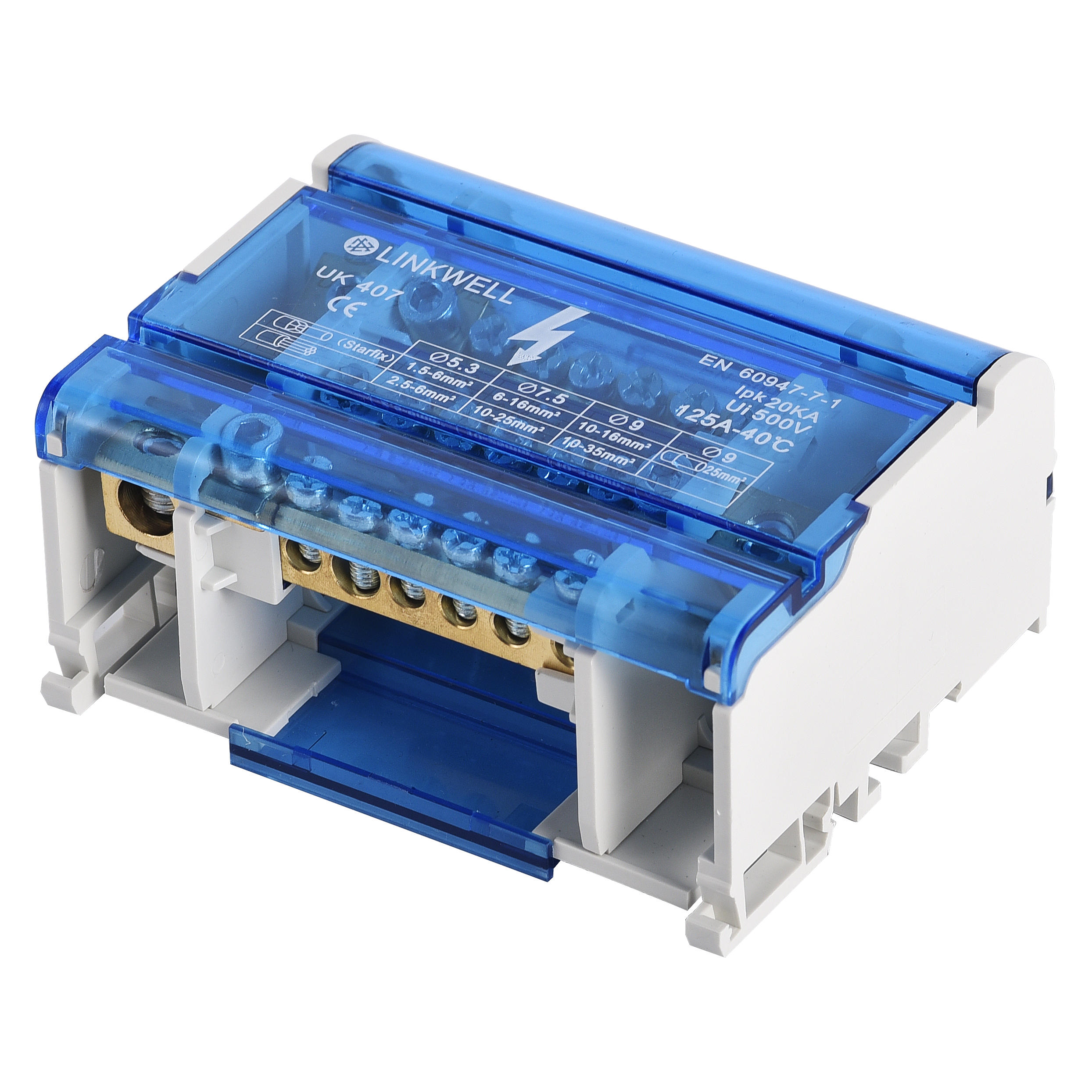

UK407

Picture	Overall Dimensions	Current	Voltage	Flame retardant grade	Number of terminals/pole	Wire	Authentication
	109×91×50 （mm)	125A	500V	UL94-V0	4-pole	1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ;	CE/RoHS


Overall Dimensions

Current

Voltage

Flame retardant grade

Number of terminals/pole

Wire

Authentication

109×91×50

（mm)

125A

500V

UL94-V0

4-pole

1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ;

CE/RoHS

UK411

Picture	Overall Dimensions	Current	Voltage	Flame retardant grade	Number of terminals/pole	Wire	Authentication
	147×91×50 （mm)	125A	500V	UL94-V0	4-pole	1.5-6mm² ; 6-16mm² ; 10-16mm² ; 10-25mm² ;10-35mm²	CE/RoHS


Overall Dimensions

Current

Voltage

Flame retardant grade

Number of terminals/pole

Wire

Authentication

147×91×50

（mm)

125A

500V

UL94-V0

4-pole

1.5-6mm² ; 6-16mm² ; 10-16mm² ; 10-25mm² ;10-35mm²

CE/RoHS

UK412

Picture	Overall Dimensions	Current	Voltage	Flame retardant grade	Number of terminals/pole	Wire	Authentication
	170×91.5×70.5 （mm)	160A	500V	UL94-V0	4-pole	1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ; 10-35mm²	CE/RoHS


Overall Dimensions

Current

Voltage

Flame retardant grade

Number of terminals/pole

Wire

Authentication

170×91.5×70.5

（mm)

160A

500V

UL94-V0

4-pole

1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ; 10-35mm²

CE/RoHS

UK415

Picture	Overall Dimensions	Current	Voltage	Flame retardant grade	Number of terminals/pole	Wire	Authentication
	182×91×50 （mm)	125A	500V	UL94-V0	4-pole	1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ; 10-35mm²	CE/RoHS


Overall Dimensions

Current

Voltage

Flame retardant grade

Number of terminals/pole

Wire

Authentication

182×91×50

（mm)

125A

500V

UL94-V0

4-pole

1.5-6mm² ; 6-16mm² ; 2.5-6mm² ; 10-25mm² ; 10-35mm²

CE/RoHS
