Product Features
DB SERIES
COMPACT DISTRIBUTION BLOCKS
Insulating body: PA 66 UL 94-V0, gray RAL 7035
Cover: PC UL 94-V0, transparent yellow
Conduction block:
- Tinned copper (RPU2995-RPU3000-RPU3005-RPU3015)
- Brass (RPU3010-RPT3000-RPT3005)
Clamps: Galvanized steel and Al alloy
Screws: Galvanized steel
Index Protection IP20
Compliant with standard EN 60947-7-1
UL 1059 standard recognized.

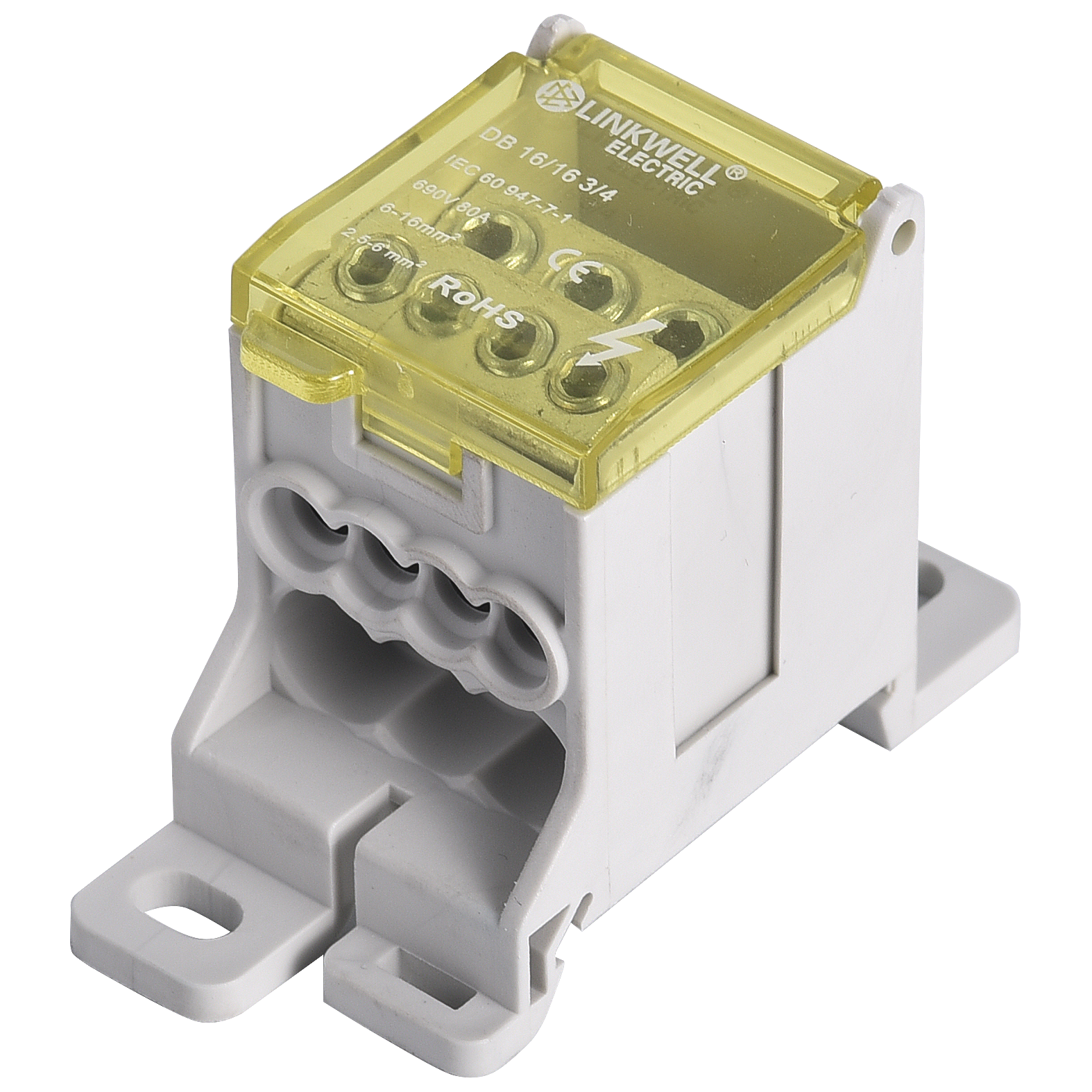

DB 16/6/ 3/4
| Picture |
Overall Dimensions （mm） |
RatedVoltage （V） |
Rated Current （A） |
Flame retardant grade | Input method | Install | Authentication |
|---|---|---|---|---|---|---|---|
 |
75x40x50 |
690
|
80
|
UL94-V0 |
Flexible busbar Aluminum or copper cables |
DIN rail/screw |
CE/RoHS |
DB 35-16/16 1-1/8
| Picture |
Overall Dimensions （mm） |
RatedVoltage （V） |
Rated Current （A） |
Flame retardant grade | Input method | Install | Authentication |
|---|---|---|---|---|---|---|---|
 |
75x40x50 |
690
|
125
|
UL94-V0 |
Flexible busbar Aluminum or copper cables |
DIN rail/screw |
CE/RoHS |

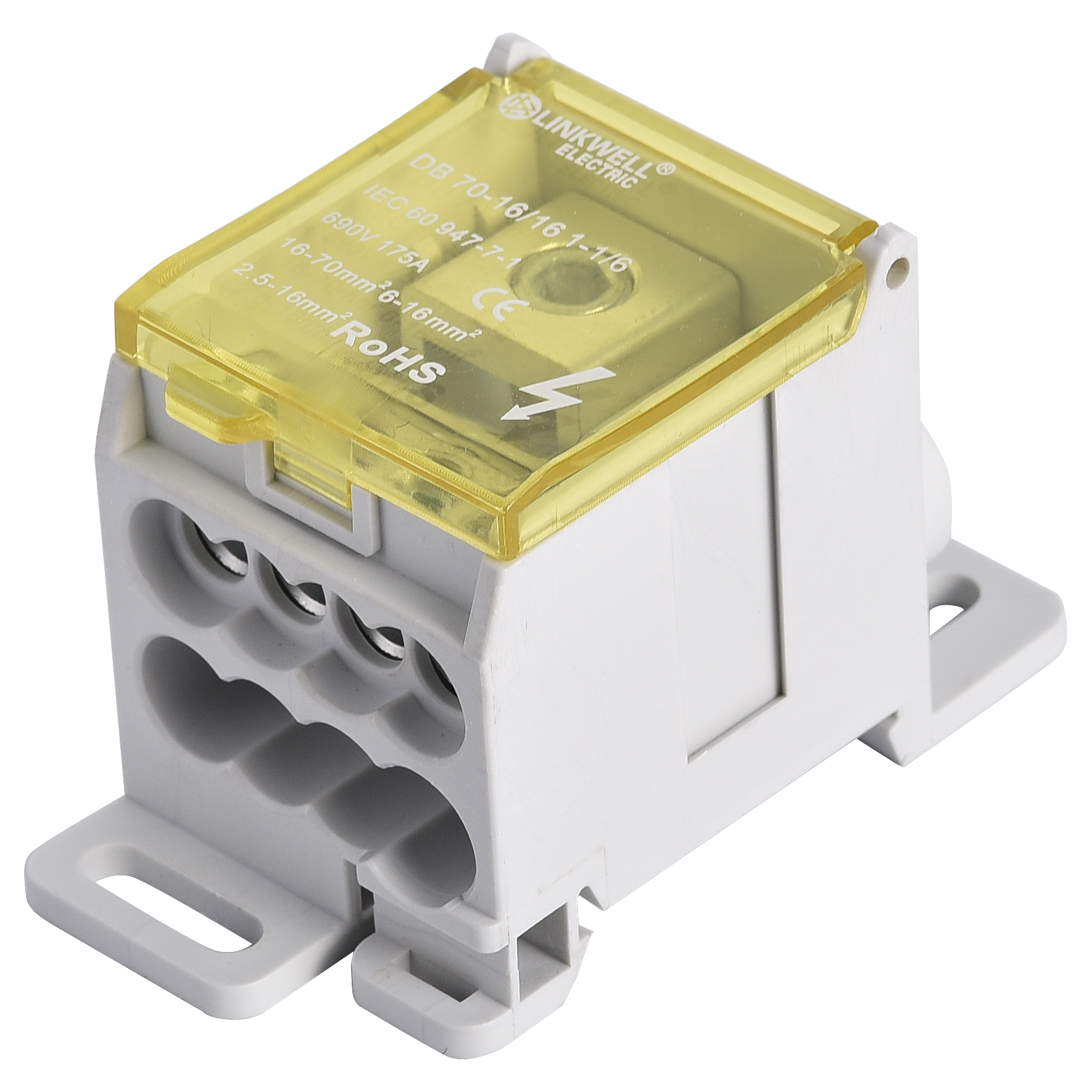

DB 70-16/16 1-1/8
| Picture |
Overall Dimensions （mm） |
RatedVoltage （V） |
Rated Current （A） |
Flame retardant grade | Input method | Install | Authentication |
|---|---|---|---|---|---|---|---|
 |
75x40x50 |
690 |
175 |
UL94-V0 |
Flexible busbar Aluminum or copper cables |
DIN rail/screw |
CE/RoHS |

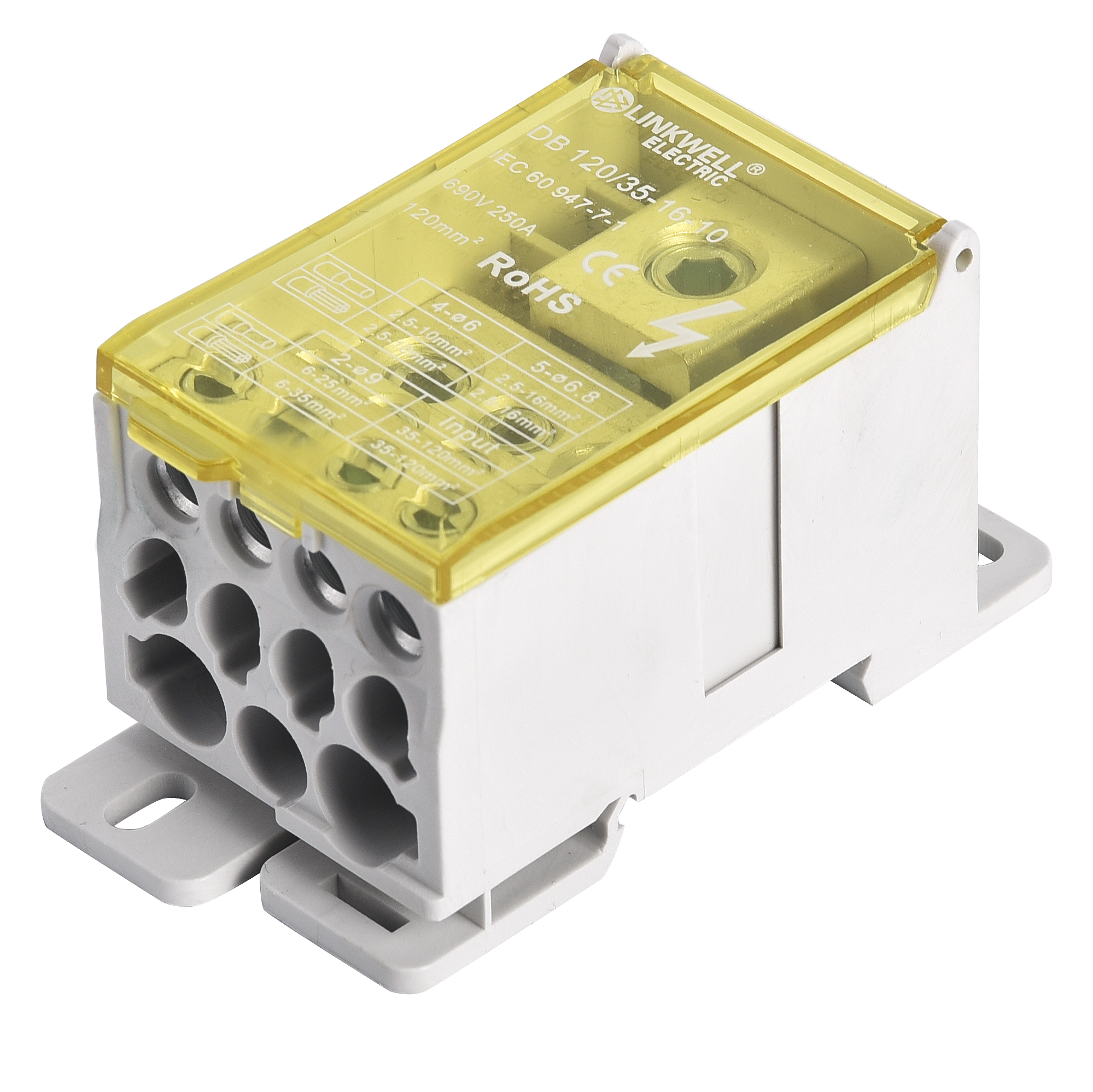

DB 120/35-16-10 1/2-5-4
| Picture |
Overall Dimensions （mm） |
RatedVoltage （V） |
Rated Current （A） |
Flame retardant grade | Input method | Install | Authentication |
|---|---|---|---|---|---|---|---|
 |
96x46.8x51.5 |
690 |
250 |
UL94-V0 |
Flexible busbar Aluminum or copper cables |
DIN rail/screw |
CE/RoHS |
DB 185/35-16-10 1/2-5-4
| Picture |
Overall Dimensions （mm） |
RatedVoltage （V） |
Rated Current （A） |
Flame retardant grade | Input method | Install | Authentication |
|---|---|---|---|---|---|---|---|
 |
96x46.8x51.5 |
690 |
400 |
UL94-V0 |
Flexible busbar Aluminum or copper cables |
DIN rail/screw |
CE/RoHS |
DB 3P-35/16 1/6
| Picture |
Overall Dimensions （mm） |
RatedVoltage （V） |
Rated Current （A） |
Flame retardant grade | Input method | Install | Authentication |
|---|---|---|---|---|---|---|---|
 |
75.5x85x50 |
690 |
125 |
UL94-V0 |
Flexible busbar Aluminum or copper cables |
DIN rail/screw |
CE/RoHS |
DB 3P-70/16 1/6
| Picture |
Overall Dimensions （mm） |
RatedVoltage （V） |
Rated Current （A） |
Flame retardant grade | Input method | Install | Authentication |
|---|---|---|---|---|---|---|---|
 |
75.5x85x50 |
690 |
175 |
UL94-V0 |
Flexible busbar Aluminum or copper cables |
DIN rail/screw |
CE/RoHS |
