Product Features
LK SERIES
●DISTRIBUTION TERMINAL BLOCKS
●Visual inspection of conductor and confirmation of connection
●Space saving: compact
●Tinned copper blocks: Copper or Aluminum Cable
IP 20 protection/UL finger- safe: improved safety
●Cable fixing screw diameters >95% fill ratio:
excellent electrical contact, safe connections
●Hinged or removable cover: easy wiring
●C l i p - on DIN rail or mount to panel with screws:easy fixing

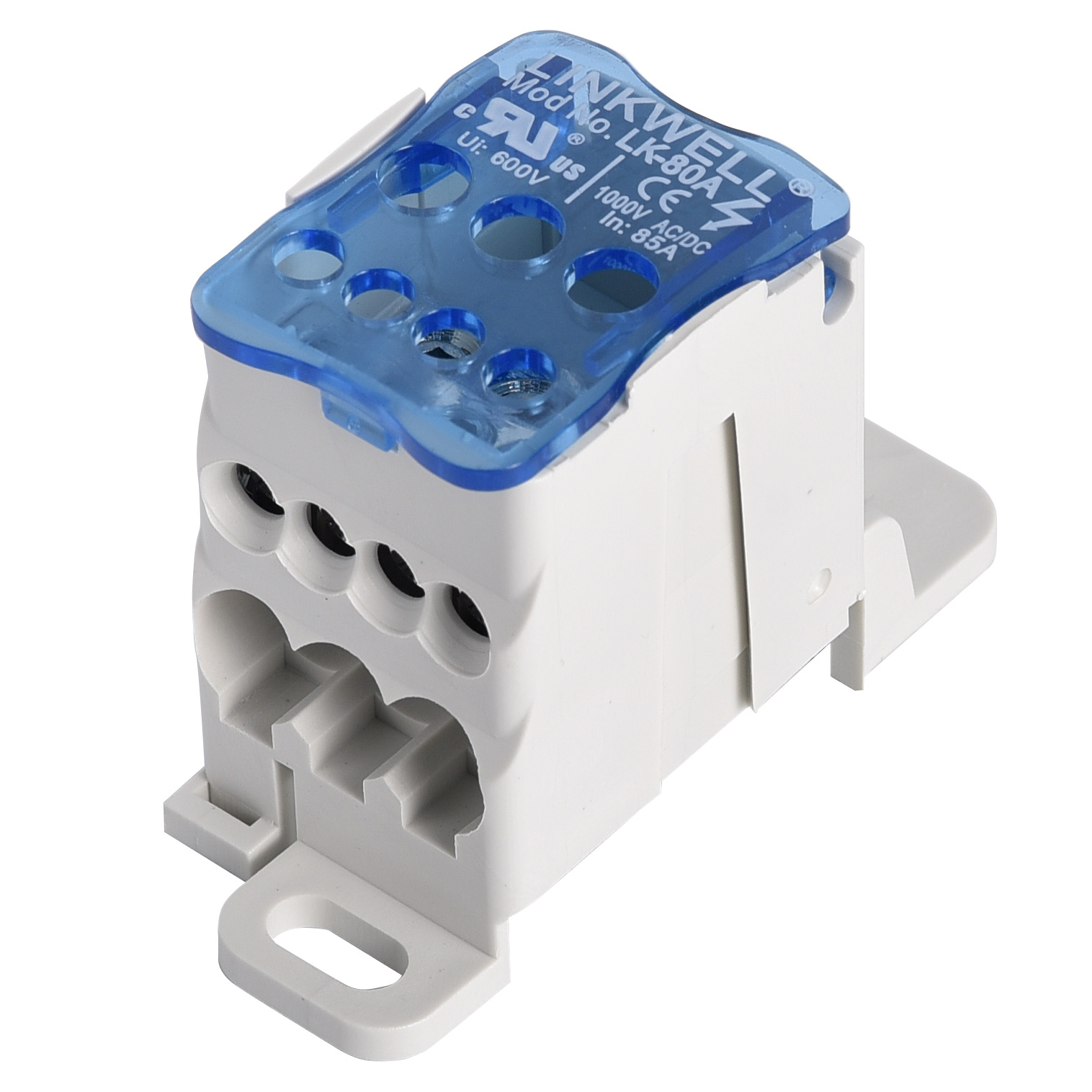

LK 80A
| Picture |
Overall Dimensions |
Ui | Vin | IPK KA | Mounting hole spacing | Flame retardant | Authentication |
|---|---|---|---|---|---|---|---|
 |
46x65x30（mm) 80A IEC 60947-7-1 85 Amp UL/CSA |
690V IEC |
600 V UL | 22 | 54mm |
UL94-V0 |
UL/CE/RoHS |

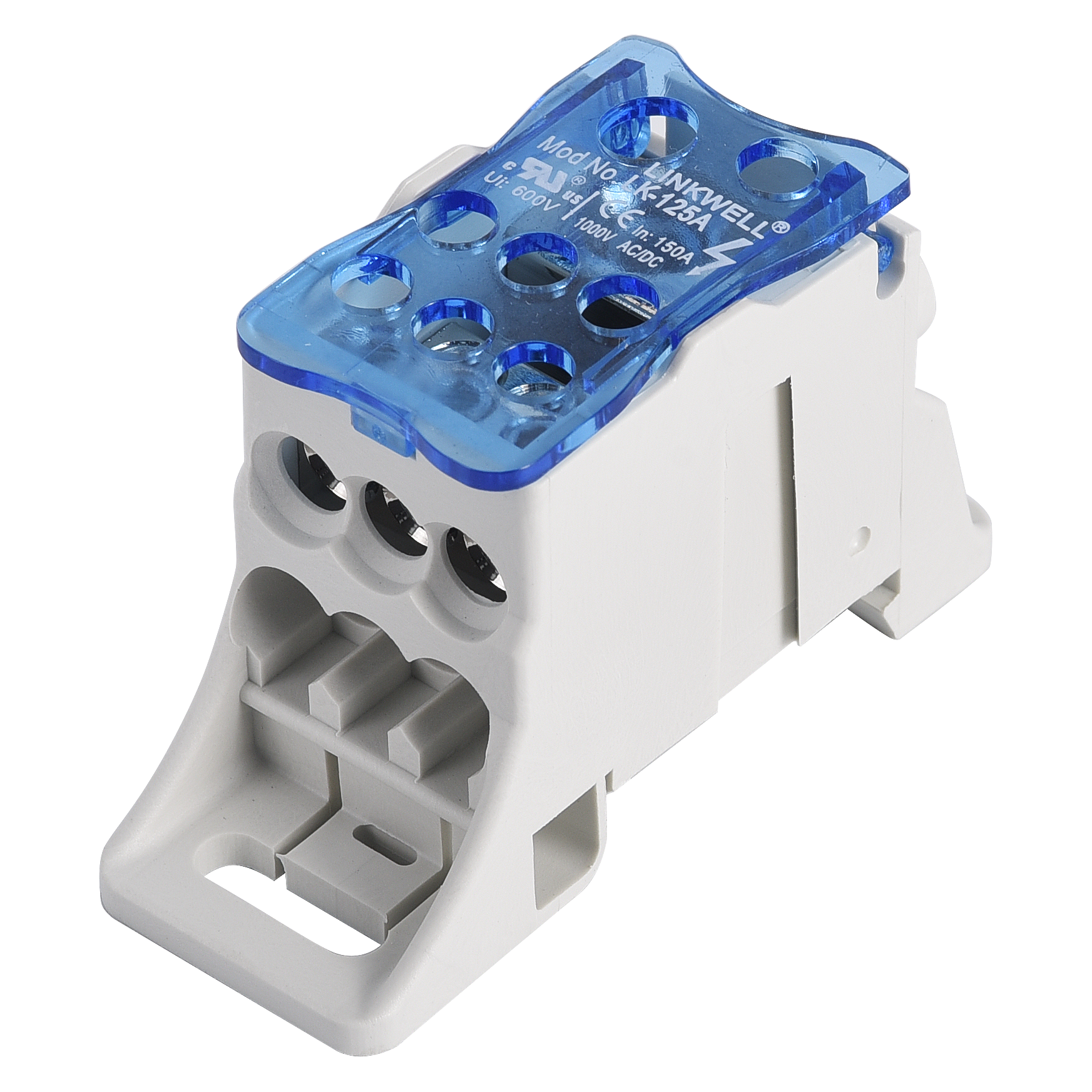

LK 125A
| Picture |
Overall Dimensions |
Ui | Vin | IPK KA | Mounting hole spacing | Flame retardant | Authentication |
|---|---|---|---|---|---|---|---|
 |
46x77x31.5（mm) 125A IEC 60947-7-1 150 Amp UL/CSA |
690V IEC |
600 V UL | 30 | 64mm |
UL94-V0 |
UL/CE/RoHS |
LK 160A
| Picture |
Overall Dimensions |
Ui | Vin | IPK KA | Mounting hole spacing | Flame retardant | Authentication |
|---|---|---|---|---|---|---|---|
 |
46x77x31.5（mm) 160A IEC 60947-7-1 200 Amp UL/CSA |
690V IEC |
600 V UL | 30 | 64mm |
UL94-V0 |
UL/CE/RoHS |

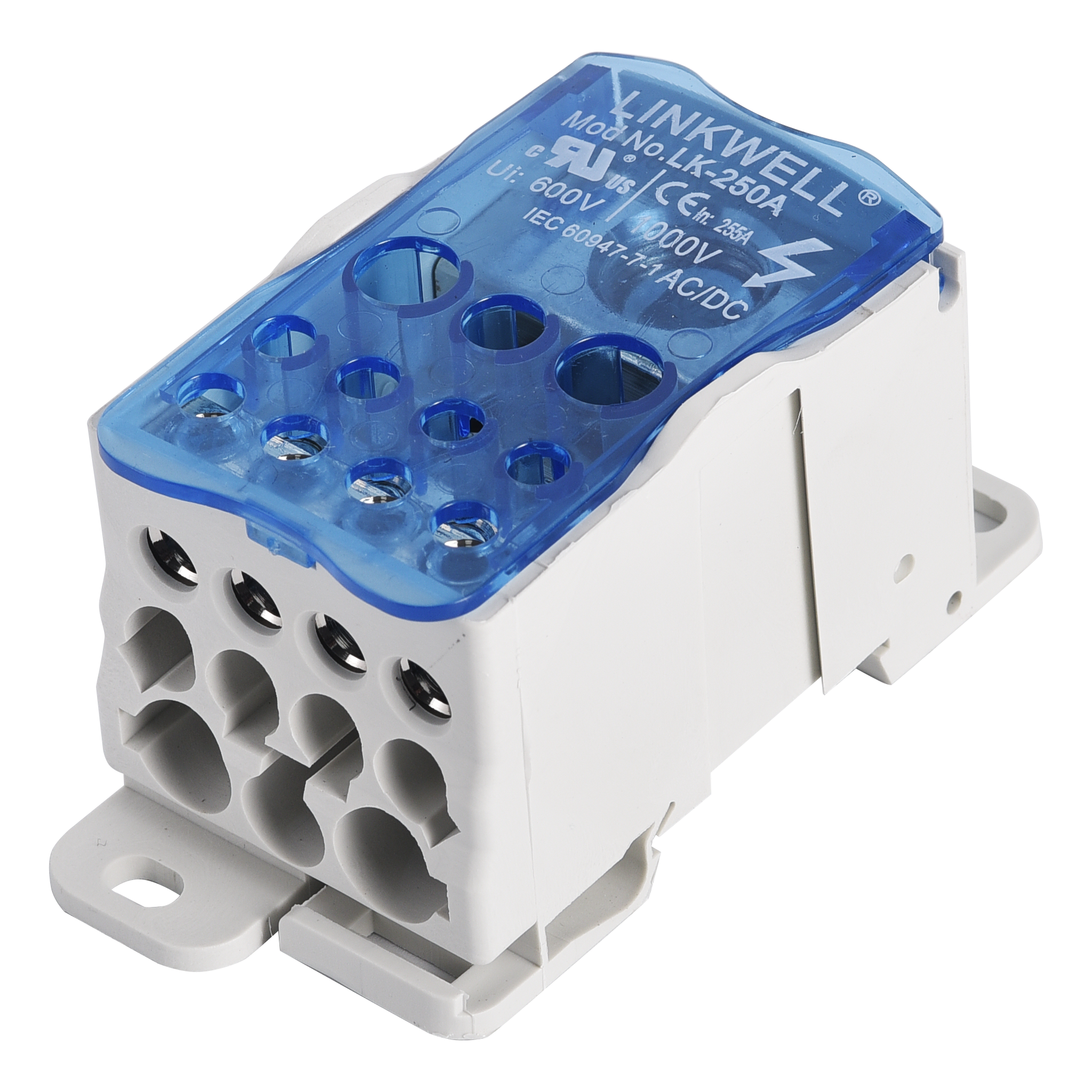

LK 250A
| Picture |
Overall Dimensions |
Ui | Vin | IPK KA | Mounting hole spacing | Flame retardant | Authentication |
|---|---|---|---|---|---|---|---|
 |
49x96x50（mm) 250A IEC 60947-7-1 255 Amp UL/CSA |
690V IEC |
600 V UL | 51 | 85×29mm |
UL94-V0 |
UL/CE/RoHS |
LK 400A
| Picture |
Overall Dimensions |
Ui | Vin | IPK KA | Mounting hole spacing | Flame retardant | Authentication |
|---|---|---|---|---|---|---|---|
 |
49x96x50（mm) 400A IEC 60947-7-1 355 Amp UL/CSA |
690V IEC |
600 V UL | 51 | 85×29mm |
UL94-V0 |
UL/CE/RoHS |
LK 500A
| Picture |
Overall Dimensions |
Ui | Vin | IPK KA | Mounting hole spacing | Flame retardant | Authentication |
|---|---|---|---|---|---|---|---|
 |
49x96x50（mm) 400A IEC 60947-7-1 355 Amp UL/CSA |
690V IEC |
600 V UL | 51 | 85×29mm |
UL94-V0 |
UL/CE/RoHS |
