Product Features
1. It is made of high-quality environmental Acrylonitrile butadiene styrene, which is safe, reliable, durable, and can be customized with flame retardant materials, conforming to UL94-V0
2. Front cover buckle installation for easy replacement of filter cotton
3. With indicator light for easy identification of whether the fan is in production or not
4. The IP protection level can reach IP54/IP55
5. The standard color is 7035, and other colors can be customized

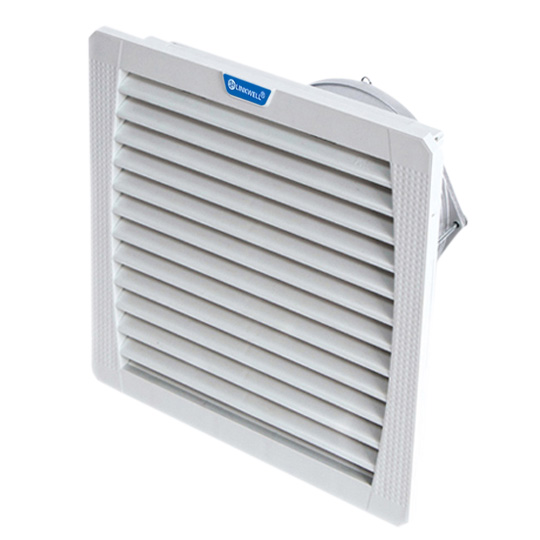

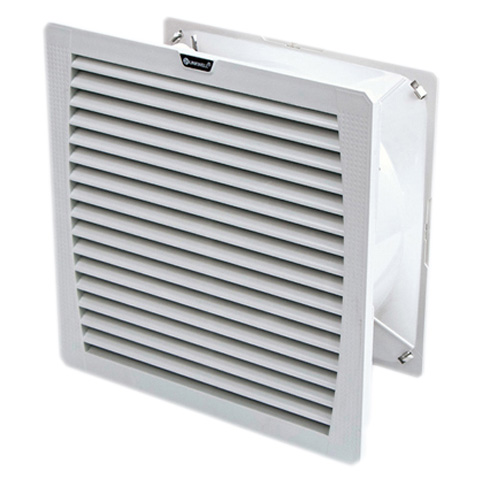

FF145 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.12A/0.11A 0.24A/0.22A 0.35A |
109X109mm | 50/60Hz | IP54 | CE CCC |

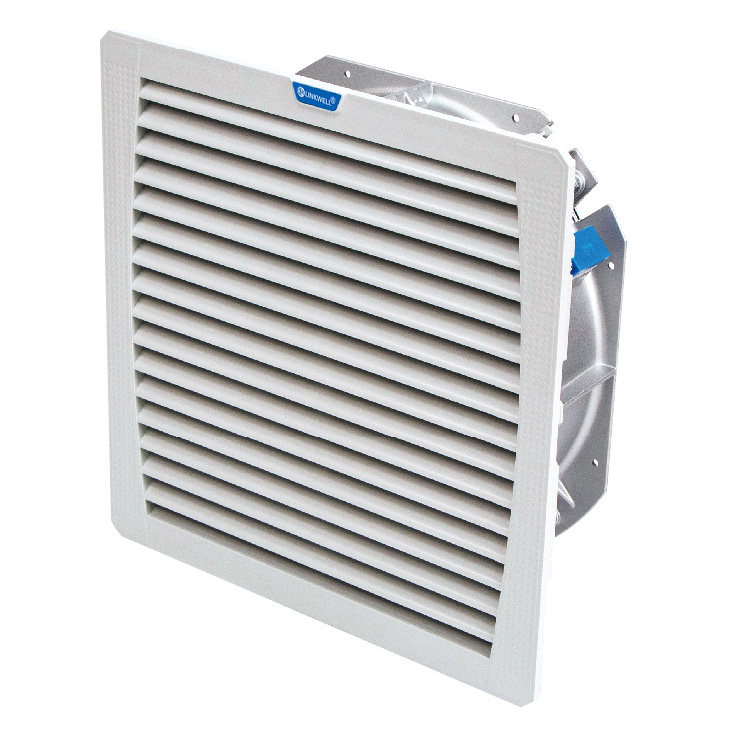

FF202 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.12A/0.11A 0.24A/0.22A 0.35A |
150X150mm | 50/60Hz | IP54 | CE CCC |

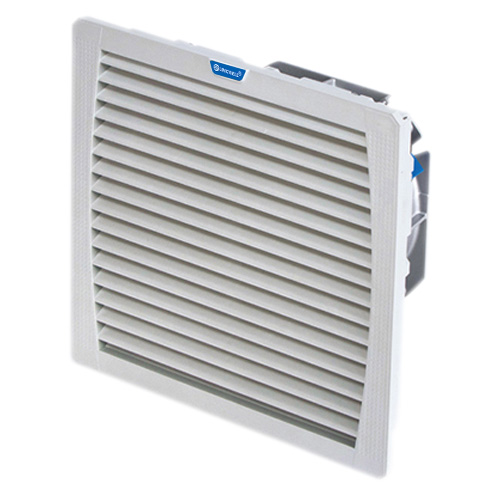

FF252-P series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.24A/0.22A 0.48A/0.46A 0.58A |
252X252mm | 50/60Hz | IP54 | CE CCC |

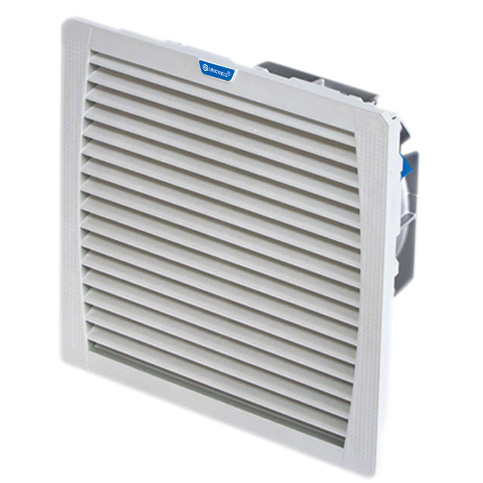

FF252-M series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.30A/0.28A 0.52A/0.5A
|
252X252mm | 50/60Hz | IP54 | CE CCC |

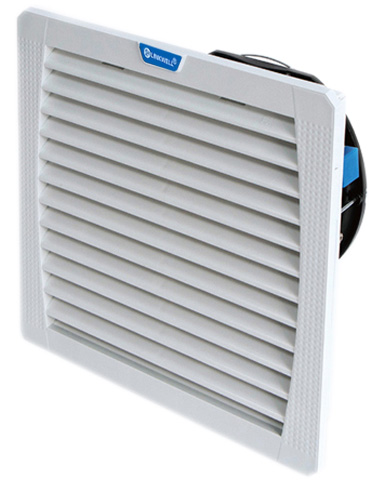

FF320 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.29A/0.37A 0.52A/0.55A
|
252X252mm | 50/60Hz | IP54 | CE CCC |

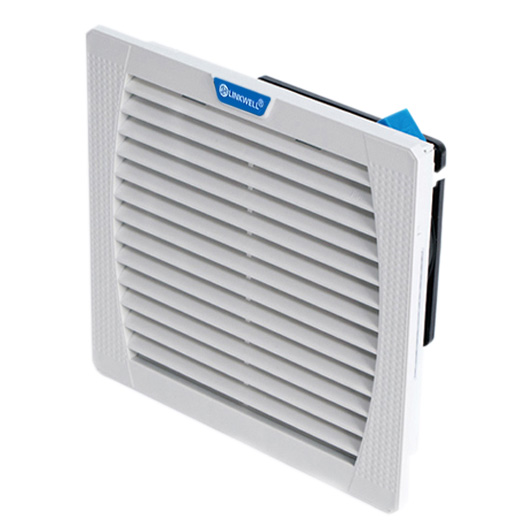

FF320-D series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.52A/0.65A 0.9A/0.95A
|
320X320mm | 50/60Hz | IP54 | CE CCC |
FF5000 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.29A/0.37A 0.52A/0.55A
|
320X320mm | 50/60Hz | IP54 |
CE CCC
|
FF7000 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.52A/0.65A 0.9A/0.95A |
323X323mm | 50/60Hz | IP54 |
CE CCC
|

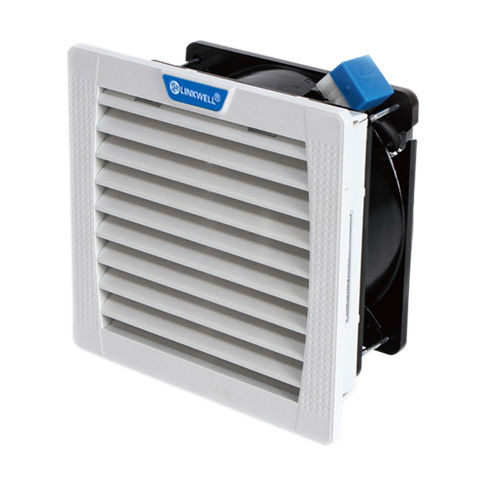

FF130 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.07A/0.06A 0.14A/0.13A 018A |
130X130mm | 50/60Hz | IP54 |
CE CCC
|
