Product Features
1. It is made of high-quality environmental Acrylonitrile butadiene styrene, which is safe, reliable, durable, and can be customized with flame retardant materials, conforming to UL94-V0
2. Front cover buckle installation for easy replacement of filter cotton
3. With indicator light for easy identification of whether the fan is in production or not
4. The IP protection level can reach IP54/IP55
5. The standard color is 7035, and other colors can be customized

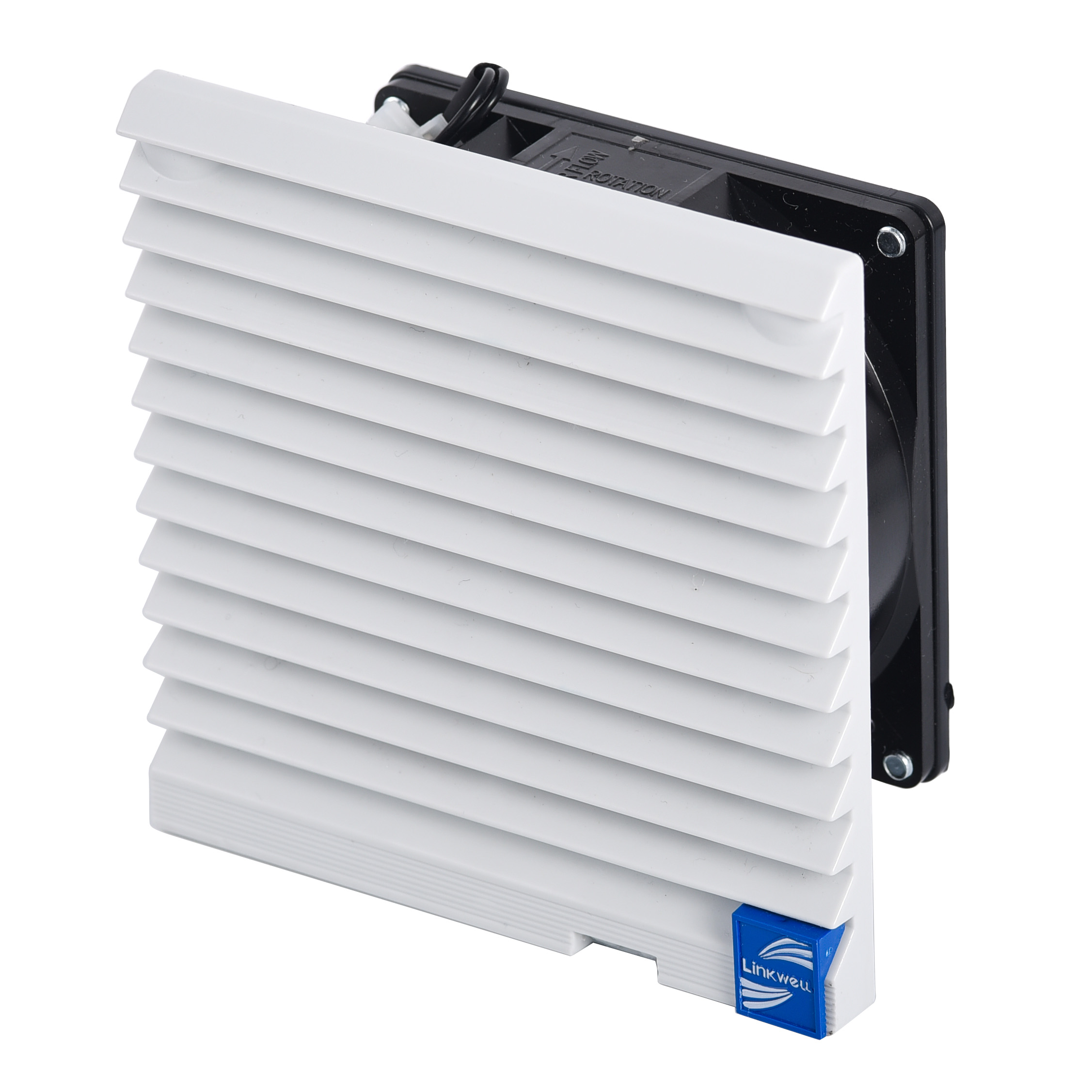

LK6621 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.07A/0.06A 0.14A/0.13A 0.18A |
116.5X116.5mm | 50/60Hz | IP54 | CE CCC |

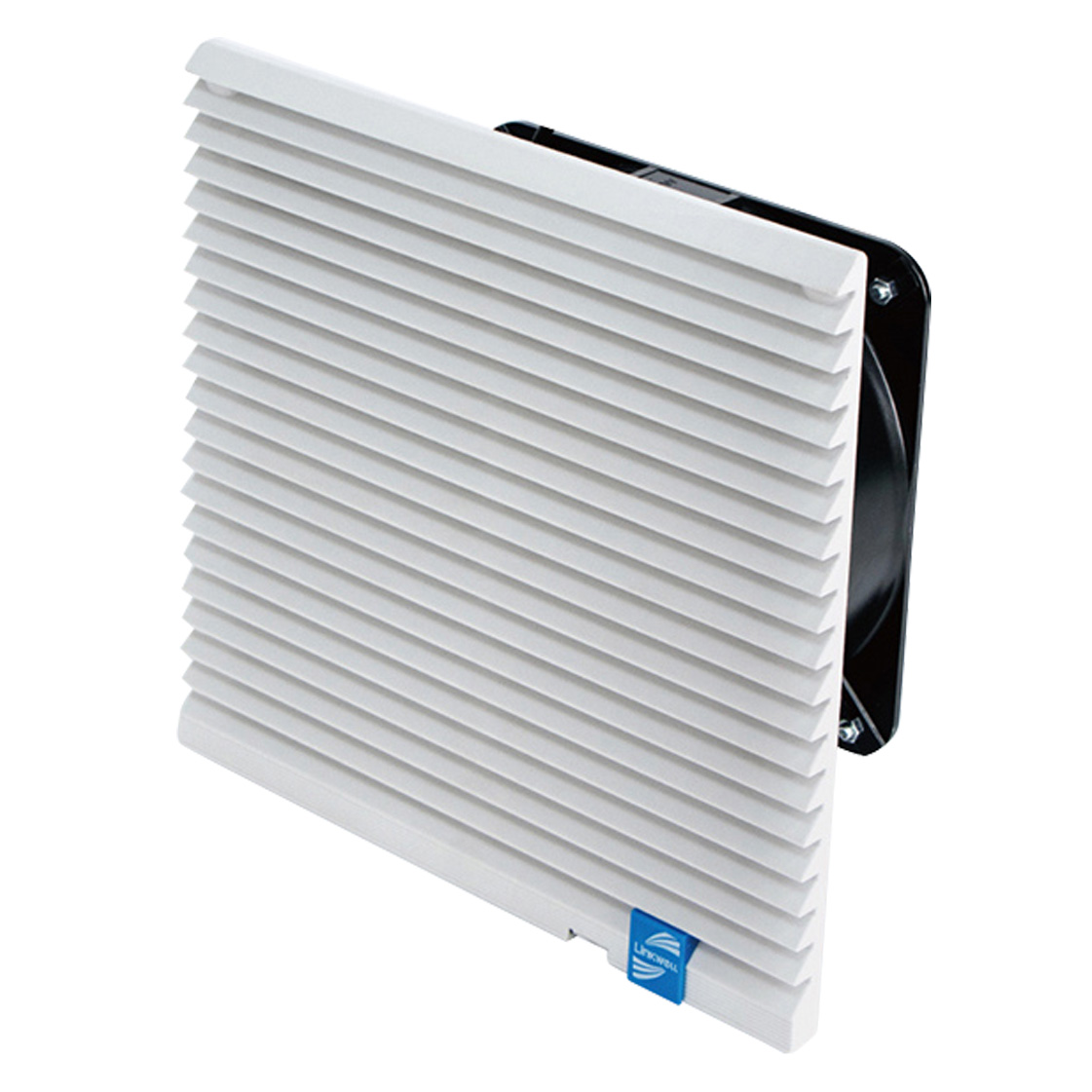

LK6622 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.12A/0.11A 0.24A/0.22A 0.35A |
148.5X148.5mm | 50/60Hz | IP54 | CE CCC |

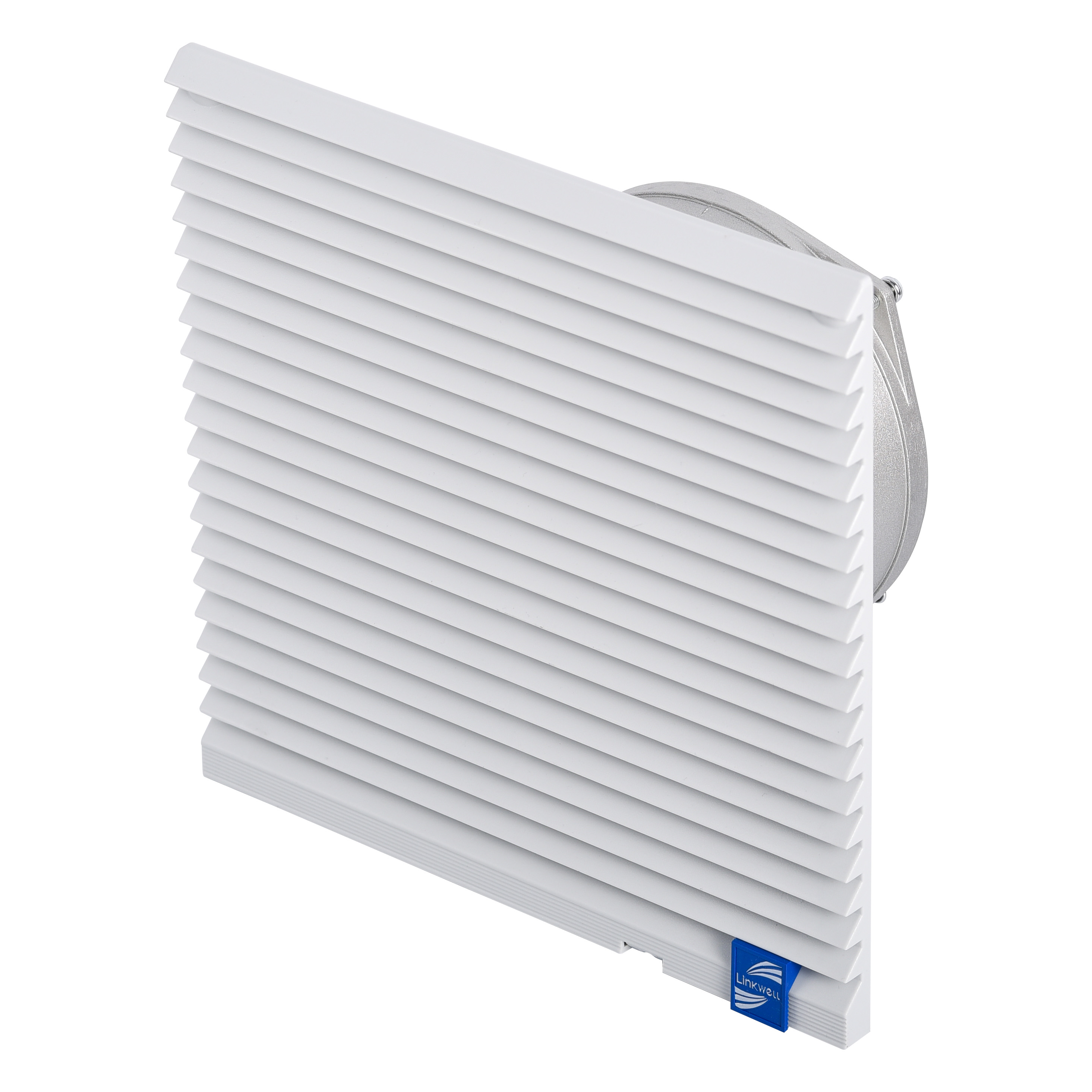

LK6623 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.12A/0.11A 0.24A/0.22A 0.35A |
204X204mm | 50/60Hz | IP54 | CE CCC |

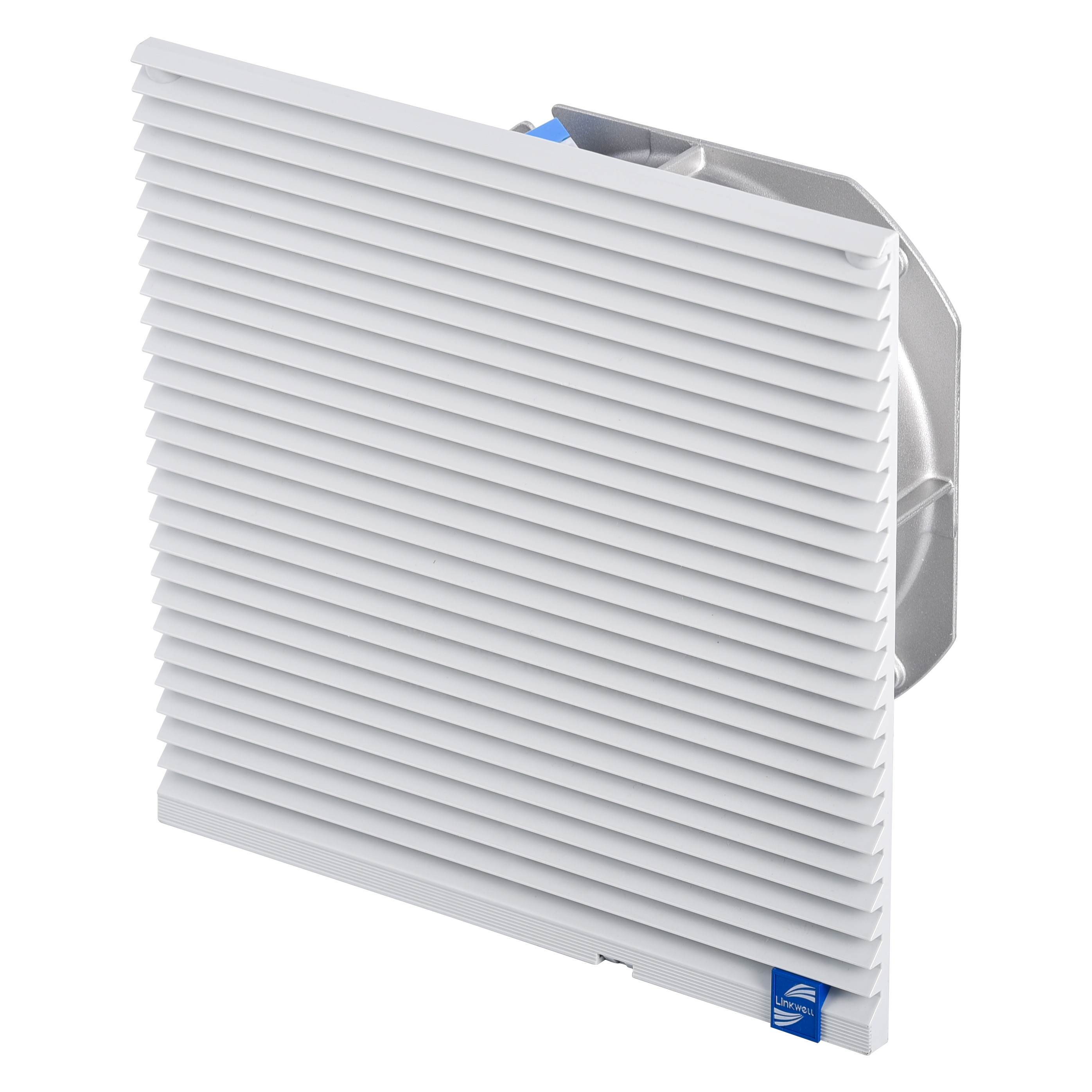

LK6624 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.24A/0.22A 0.48A/0.46A 0.58A |
255X255mm | 50/60Hz | IP54 | CE CCC |

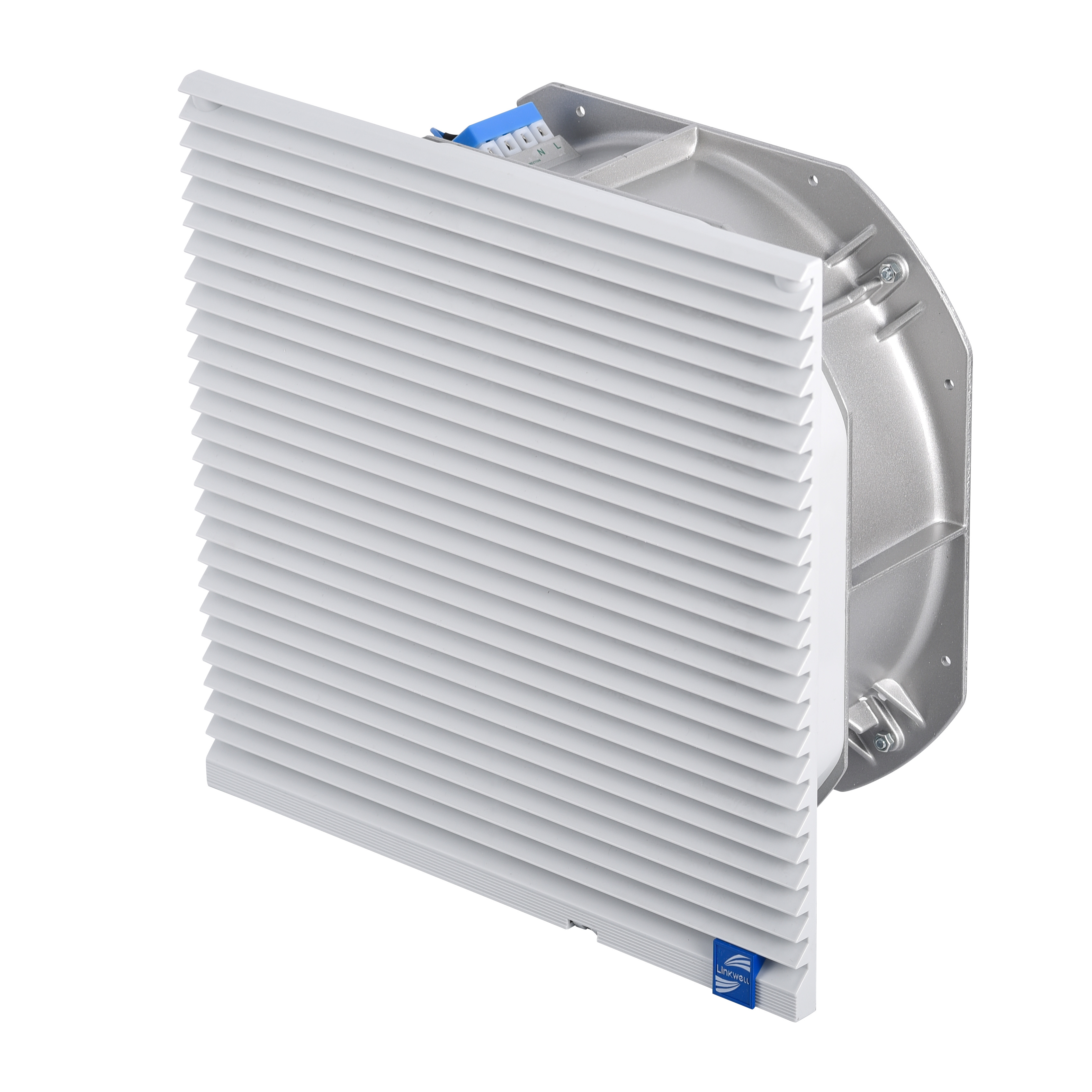

LK6625 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.30A/0.28A 0.52A/0.5A
|
255X255mm | 50/60Hz | IP54 | CE CCC |

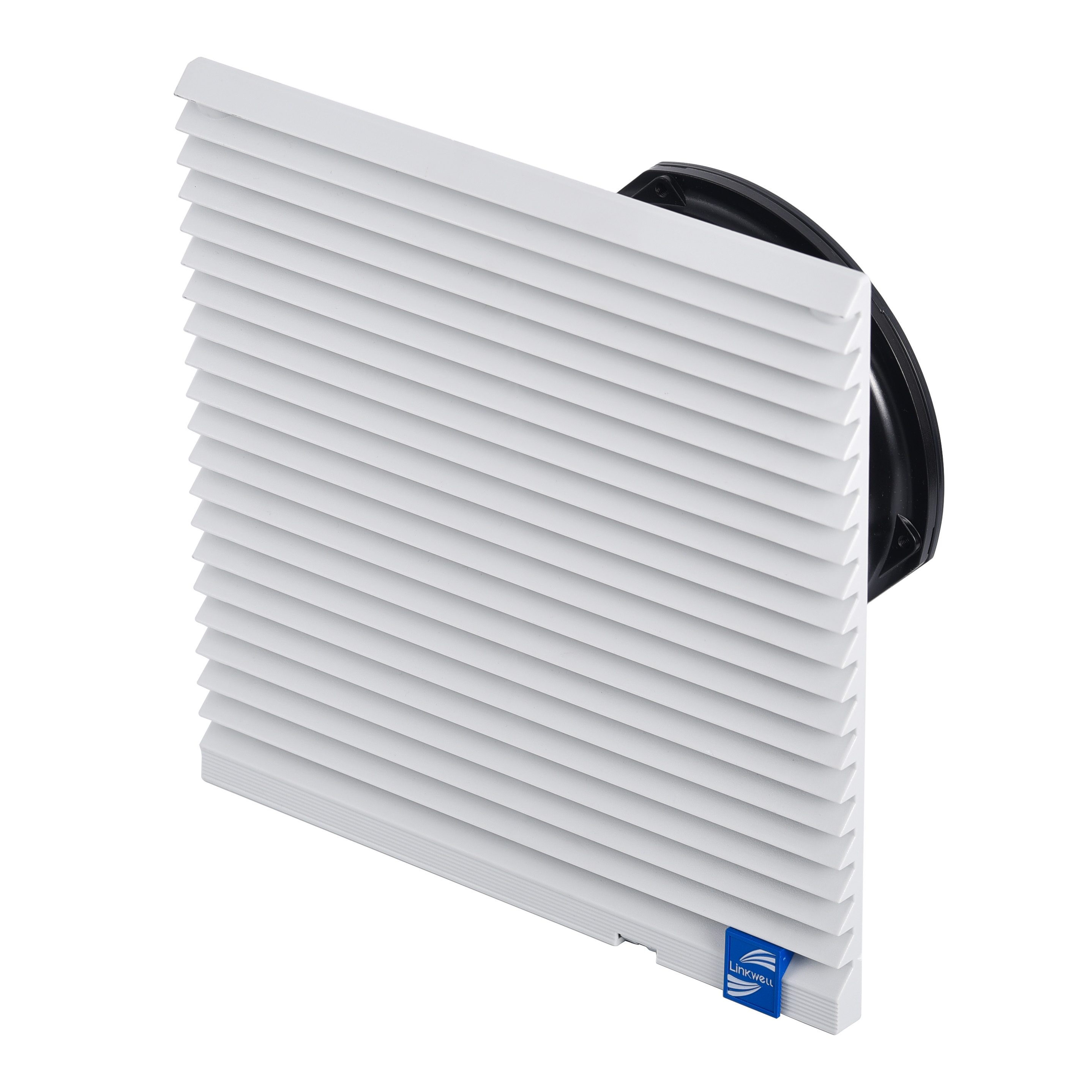

LK6625-D series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V 24V |
0.12A/0.11A 0.24A/0.22A 0.35A |
255X255mm | 50/60Hz | IP54 | CE CCC |

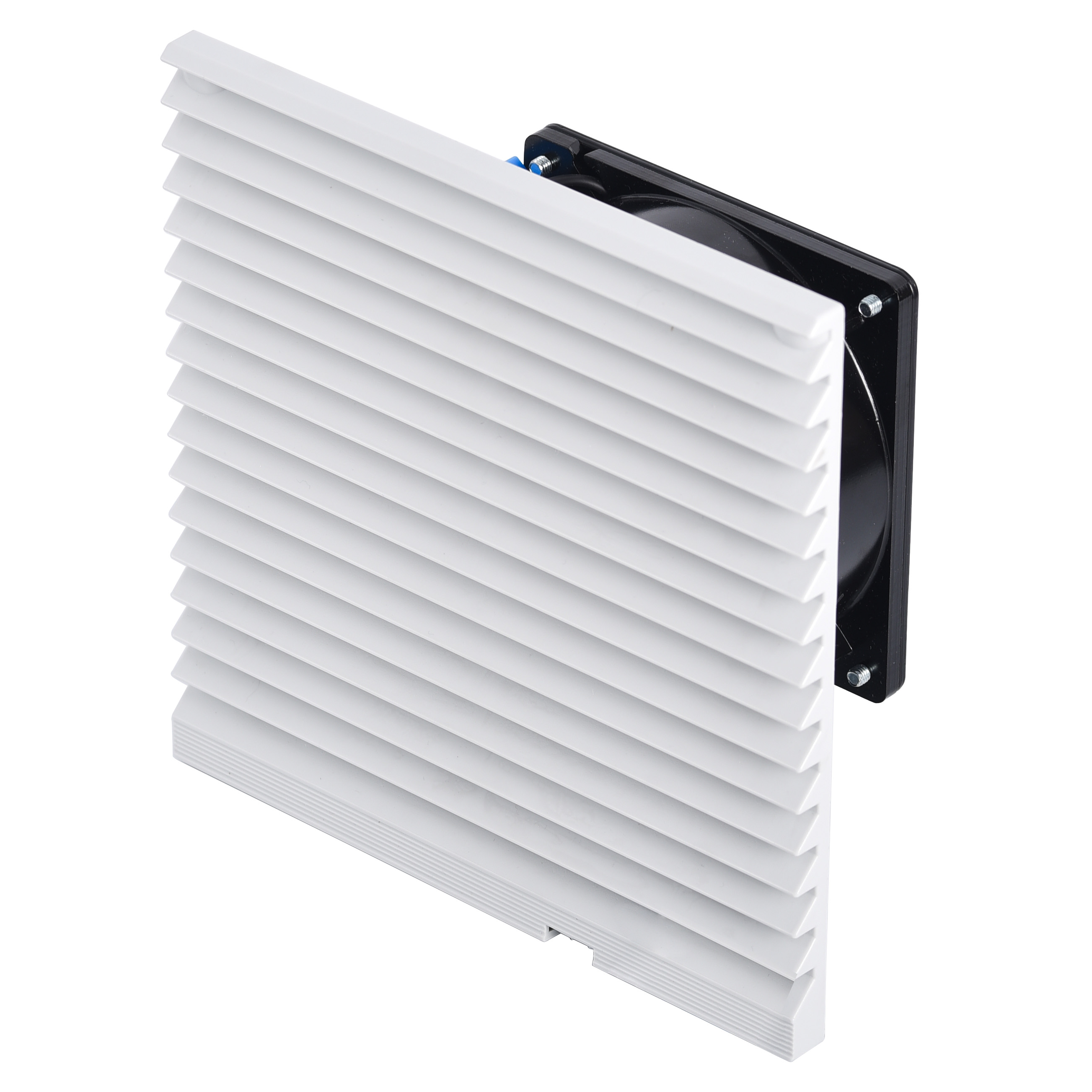

LK6626 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.29A/0.0.37A 0.52A/0.55A
|
323X323mm | 50/60Hz | IP54 |
CE CCC
|

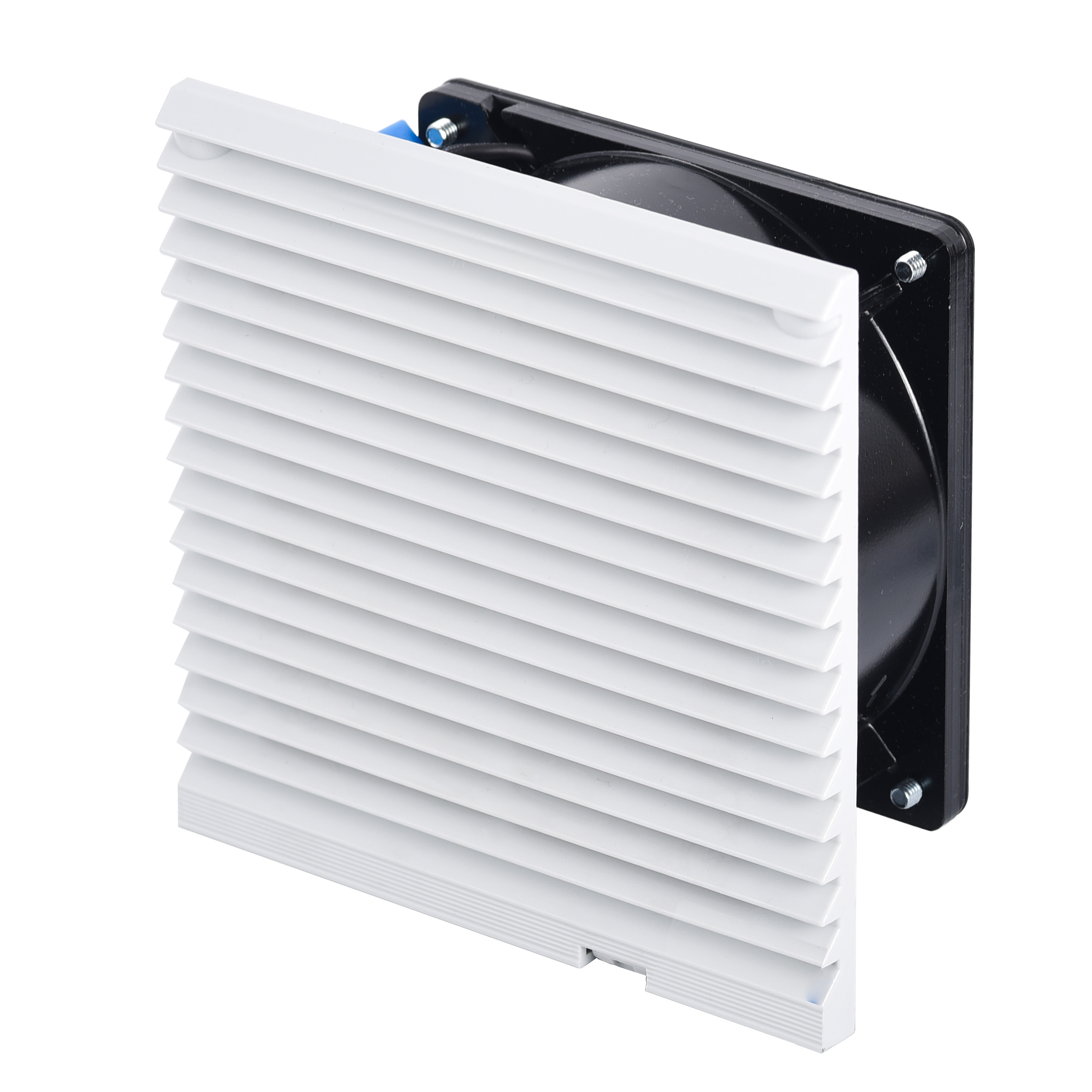

LK6627 series fan-and-filter
| Picture | Brands | Rated Voltage | Rated Current | Overall Dimensions | Frequency | Protection Code | Qualification |
|---|---|---|---|---|---|---|---|
 |
LINKWELL |
220V/240V 110V/120V
|
0.07A/0.06A 0.14A/0.13A
|
323X323mm | 50/60Hz | IP54 |
CE CCC
|
