AC Cooling Fan

Product Features
●Adopting LED light source, more energy-efficient and safer cabinet lighting design
●Equipped with human dynamic sensing function, it is more convenient and safe to use
●High light transmittance, soft and bright light
●Flexible selection of magnet and screw installation

Online Message File Download

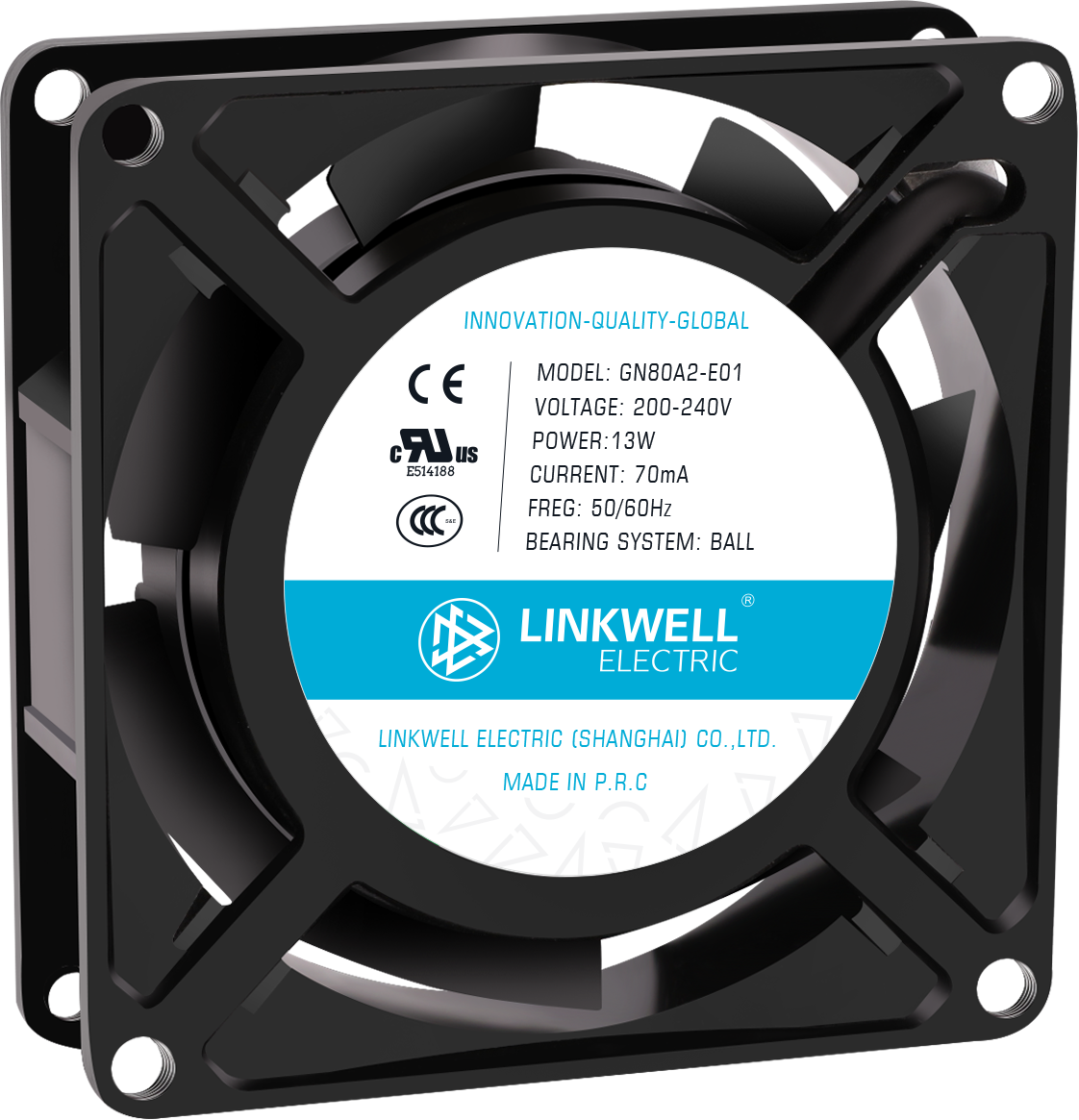

GN 80

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	80X80X25mm	100V-125V 200V-240V	13W	0.12/0.07A	50/60Hz	32/39 m3/h	26dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

80X80X25mm

100V-125V

200V-240V

13W

0.12/0.07A

50/60Hz

32/39

m3/h

26dB

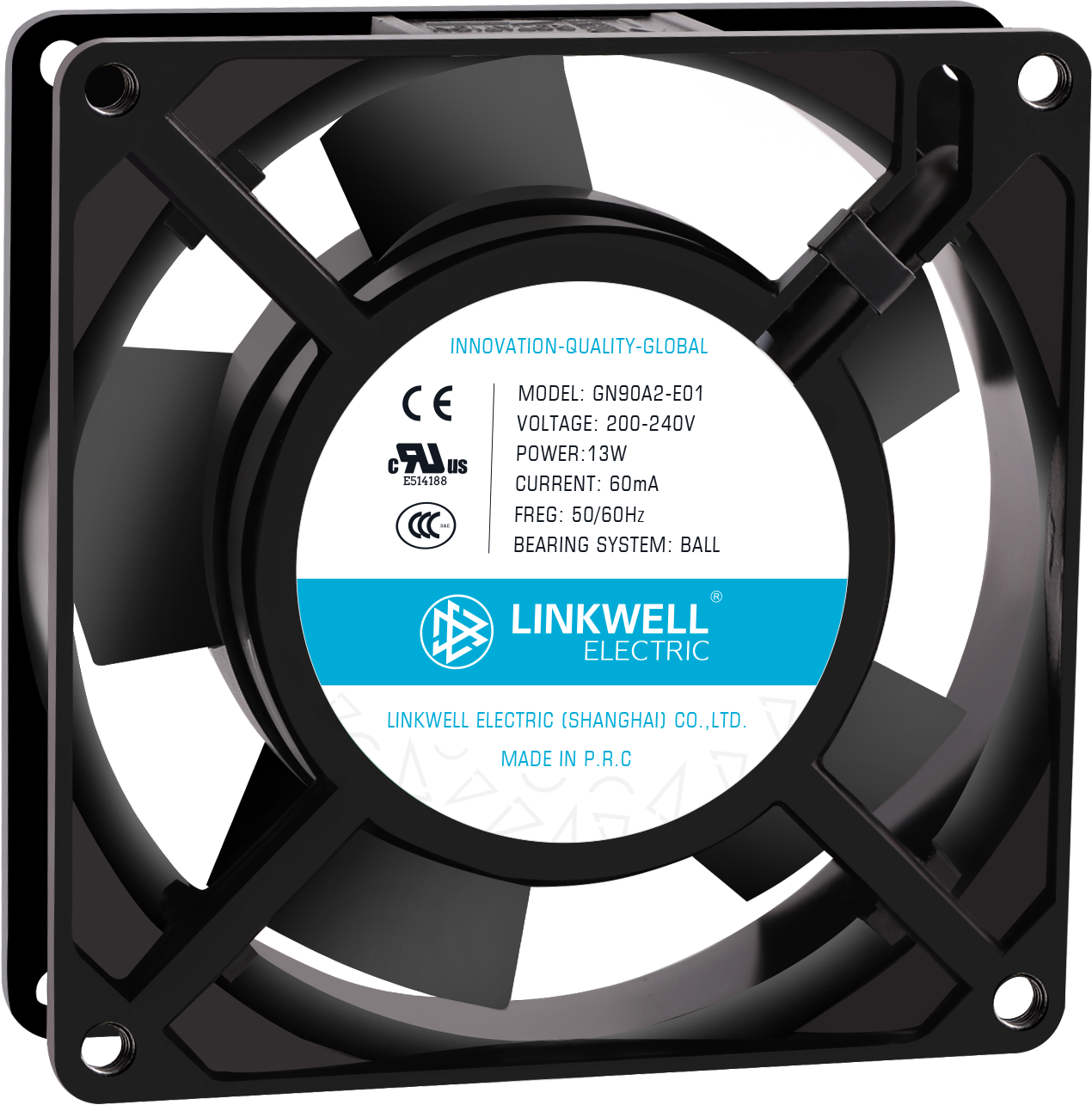

GN 90

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	90X90X25mm	100V-125V 200V-240V	13W	0.12/0.07A	50/60Hz	32/39 m3/h	32dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

90X90X25mm

100V-125V

200V-240V

13W

0.12/0.07A

50/60Hz

32/39

m3/h

32dB

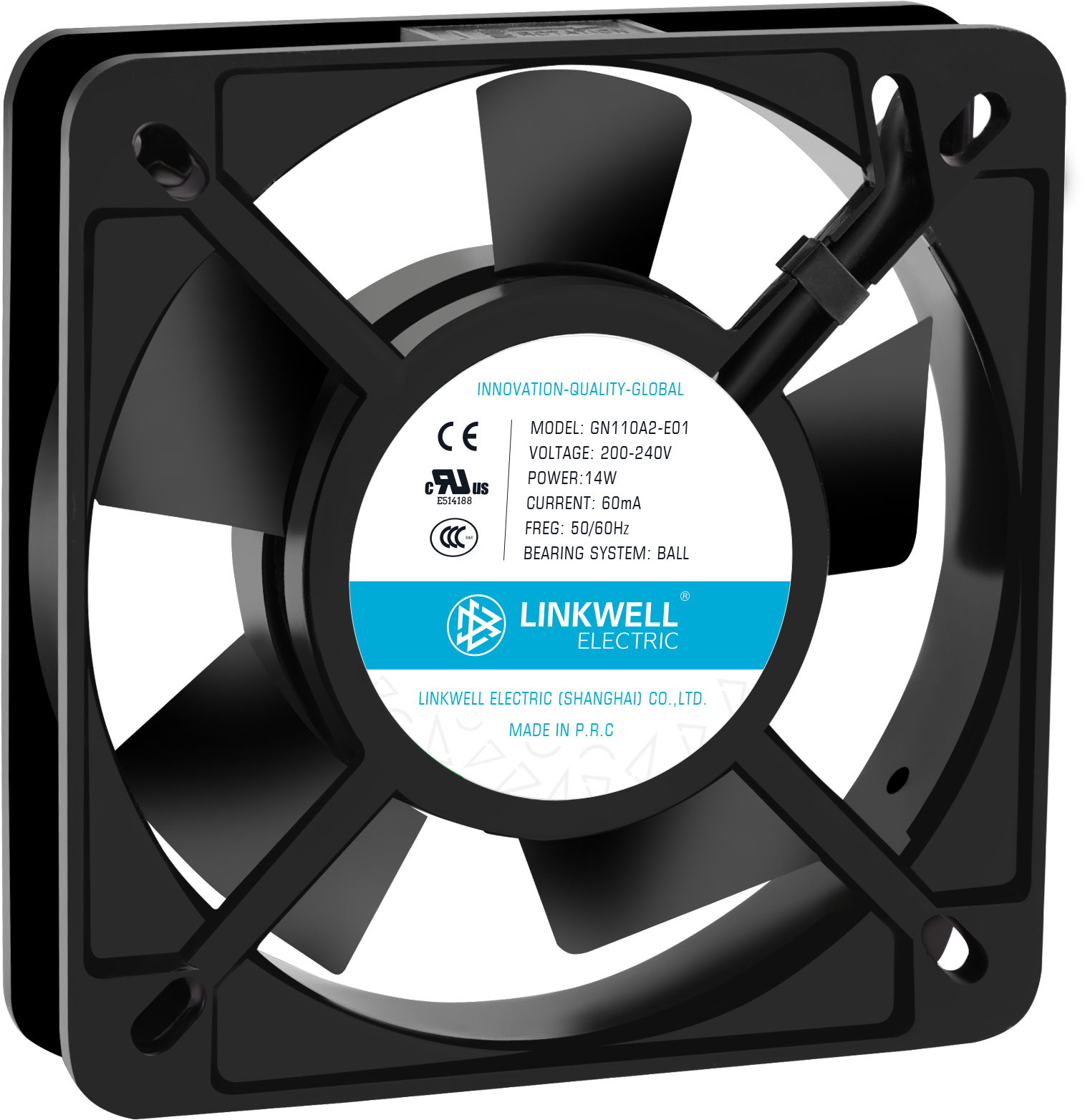

GN 110A

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	110X110X25mm	100V-125V 200V-240V	14/13W	0.17/0.07A	50/60Hz	102/120 m3/h	36dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

110X110X25mm

100V-125V

200V-240V

14/13W

0.17/0.07A

50/60Hz

102/120

m3/h

36dB

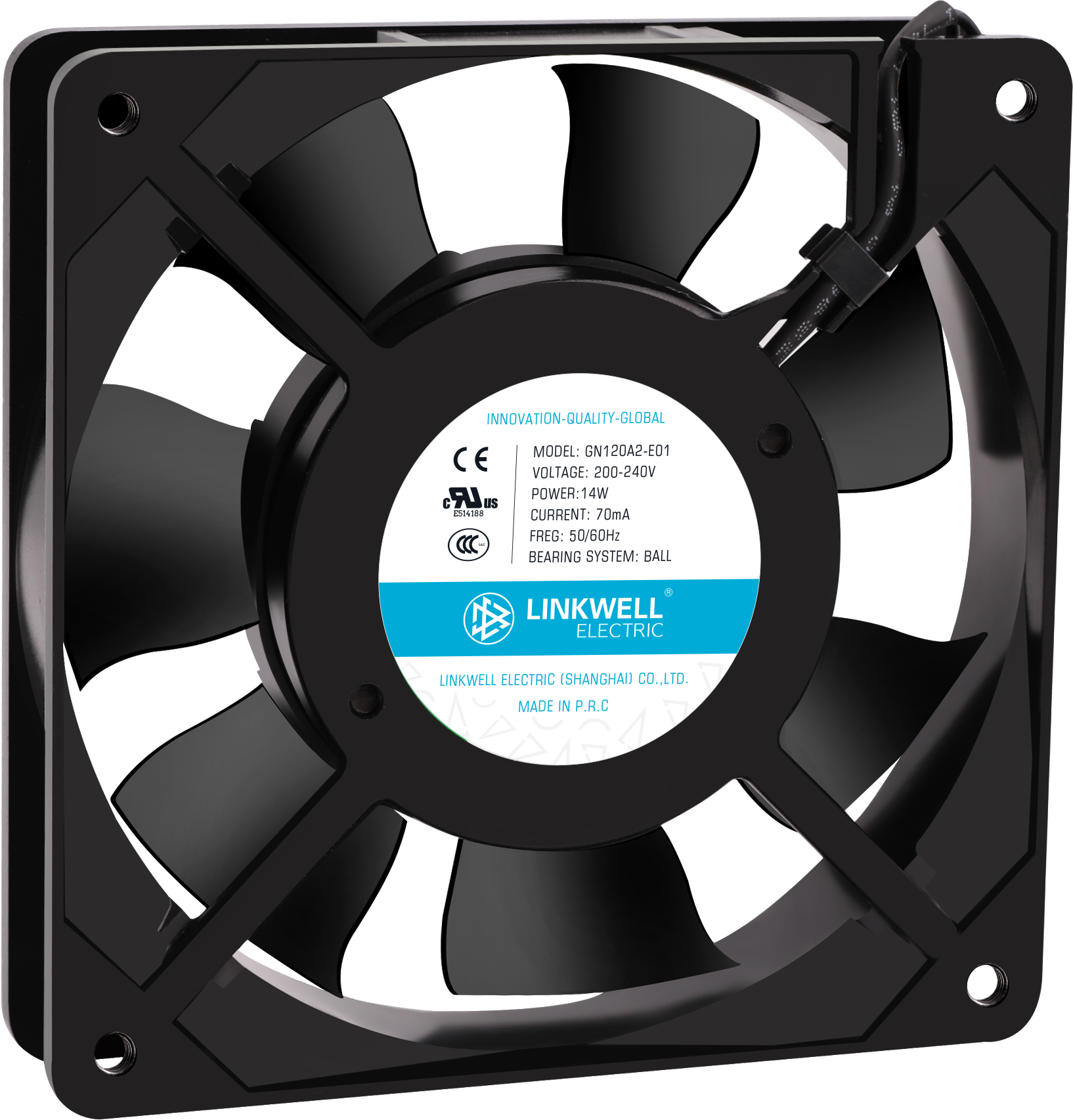

GN 120A

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	120X120X25mm	100V-125V 200V-240V	14/13W	0.17/0.07A	50/60Hz	115/129 m3/h	36dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

120X120X25mm

100V-125V

200V-240V

14/13W

0.17/0.07A

50/60Hz

115/129

m3/h

36dB

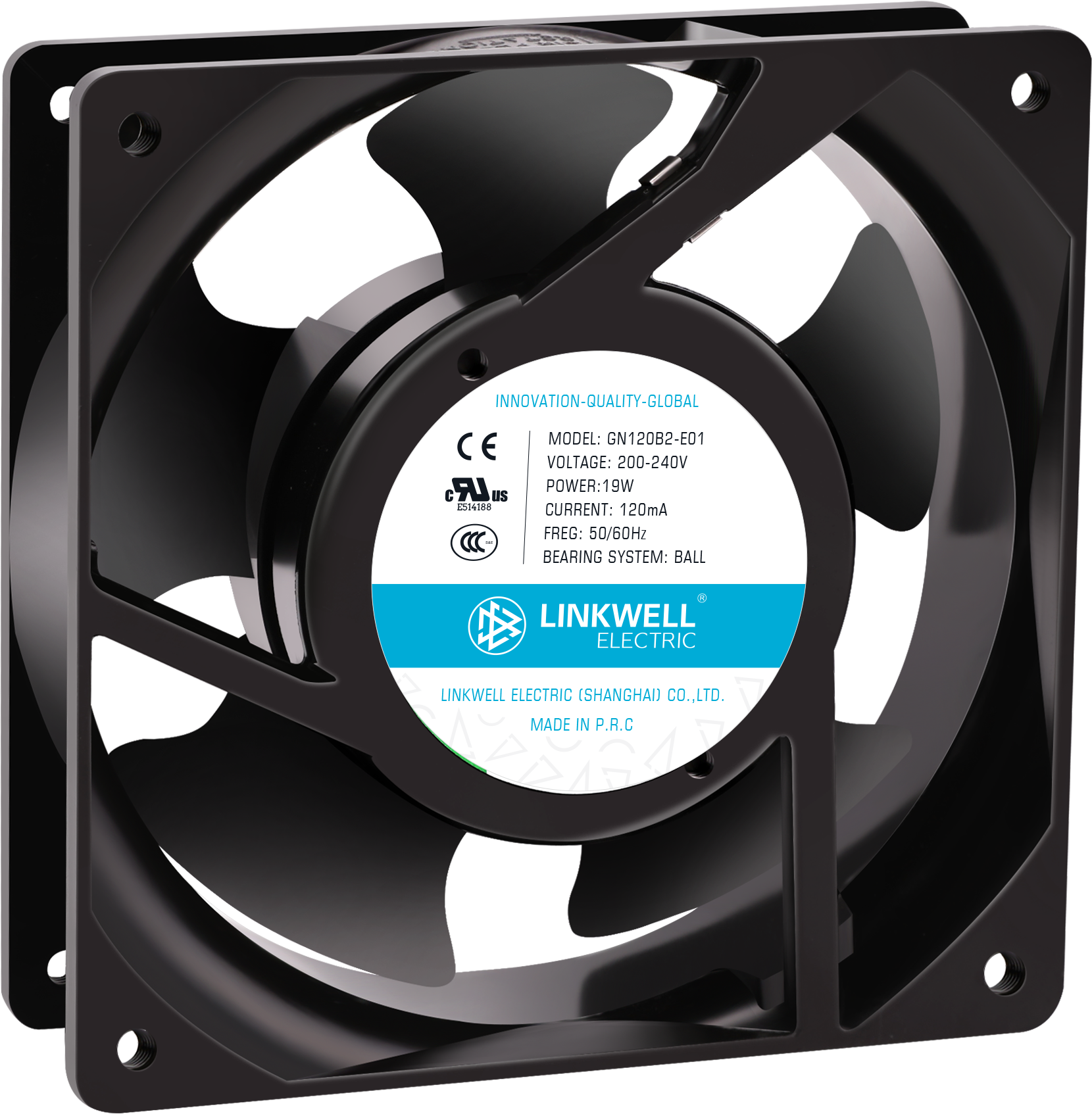

GN 120B

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	120X120X38mm	100V-125V 200V-240V	19/18W	0.24/0.12A	50/60Hz	145/162 m3/h	40dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

120X120X38mm

100V-125V

200V-240V

19/18W

0.24/0.12A

50/60Hz

145/162

m3/h

40dB

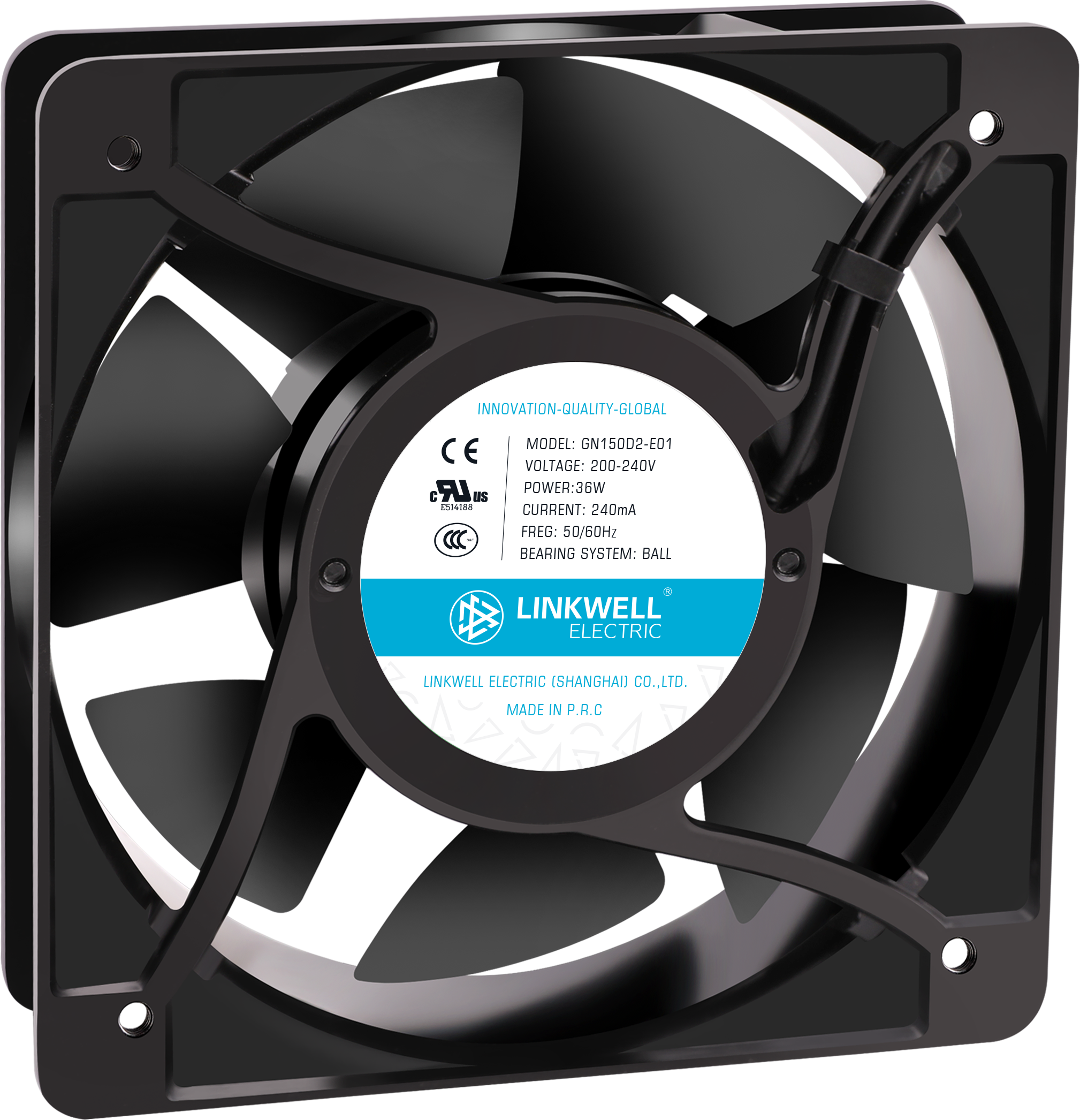

GN 150D

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	150X150X51mm	100V-125V 200V-240V	32/30W	0.50/0.24A	50/60Hz	272/289 m3/h	55dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

150X150X51mm

100V-125V

200V-240V

32/30W

0.50/0.24A

50/60Hz

272/289

m3/h

55dB

GN 170D

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	175X150X51mm	100V-125V 200V-240V	32/30W	0.50/0.24A	50/60Hz	272/289 m3/h	55dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

175X150X51mm

100V-125V

200V-240V

32/30W

0.50/0.24A

50/60Hz

272/289

m3/h

55dB

GN 180F

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	180X180X60mm	100V-125V 200V-240V	50/45W	0.86/0.45A	50/60Hz	476/510 m3/h	62dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

180X180X60mm

100V-125V

200V-240V

50/45W

0.86/0.45A

50/60Hz

476/510

m3/h

62dB

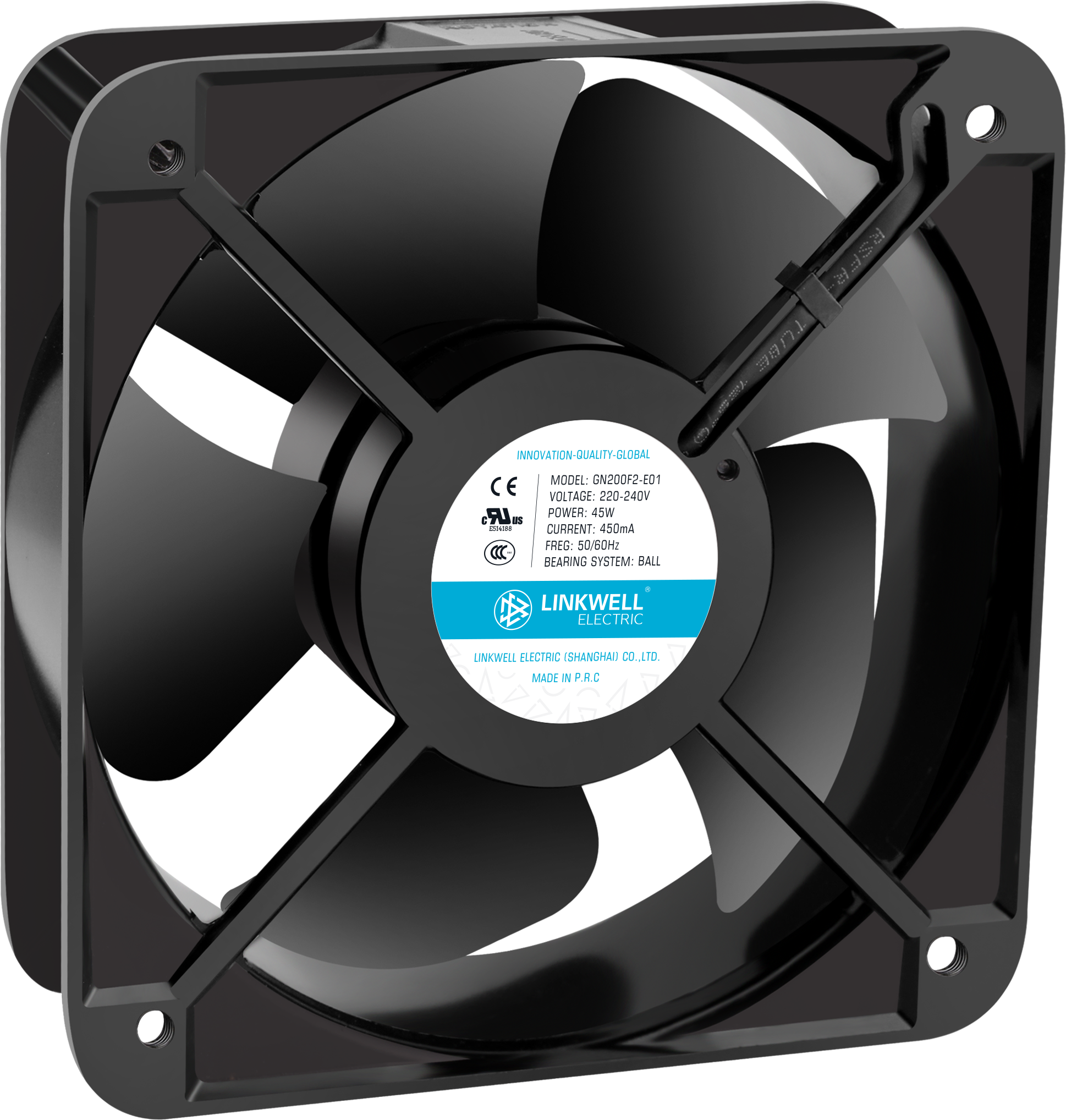

GN 200F

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	200X200X60mm	100V-125V 200V-240V	52/48W	0.86/0.45A	50/60Hz	595/648 m3/h	65dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

200X200X60mm

100V-125V

200V-240V

52/48W

0.86/0.45A

50/60Hz

595/648

m3/h

65dB

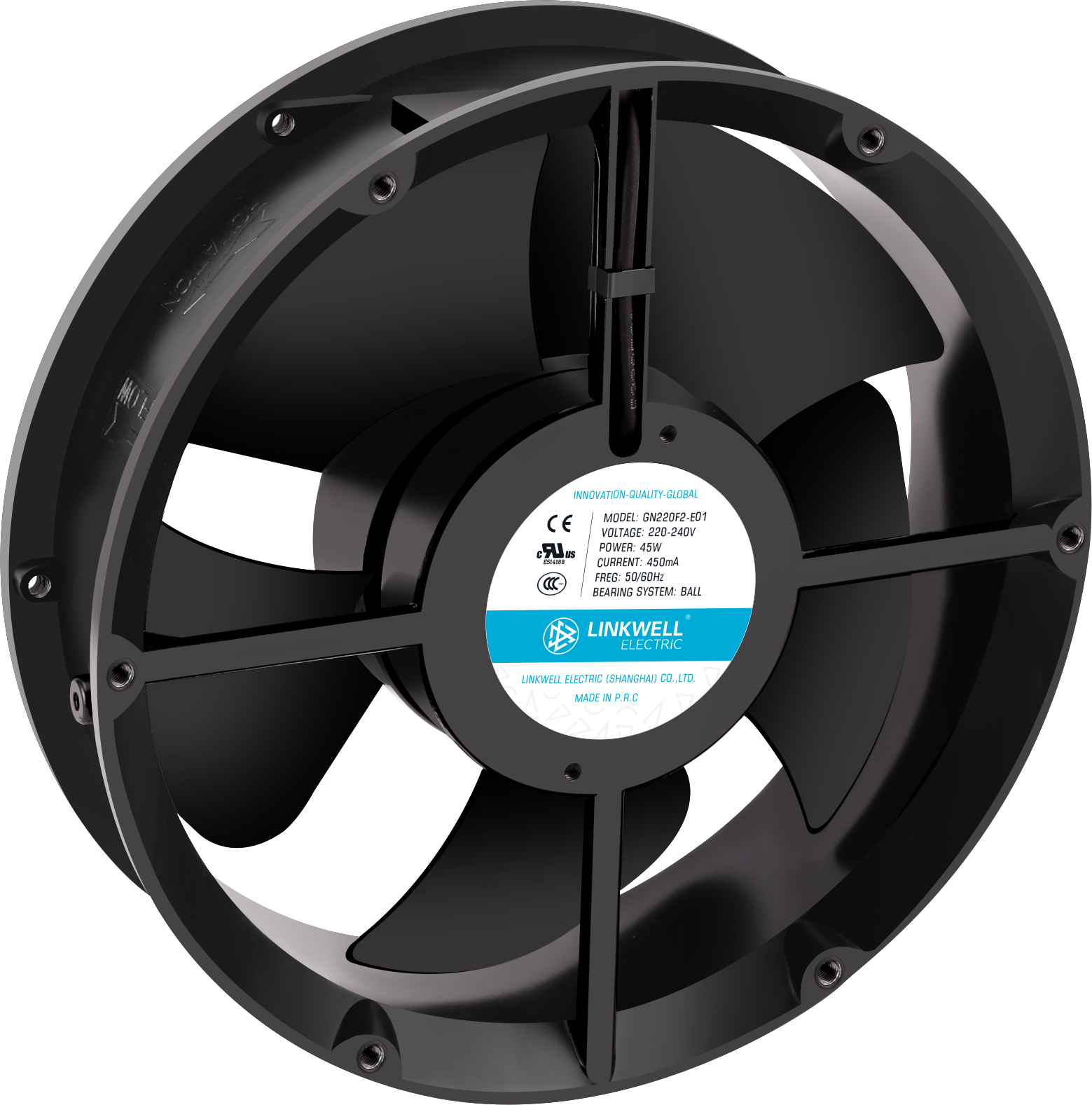

GN 220F

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	220X60mm	100V-125V 200V-240V	52/48W	0.86/0.45A	50/60Hz	595/648 m3/h	65dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

220X60mm

100V-125V

200V-240V

52/48W

0.86/0.45A

50/60Hz

595/648

m3/h

65dB

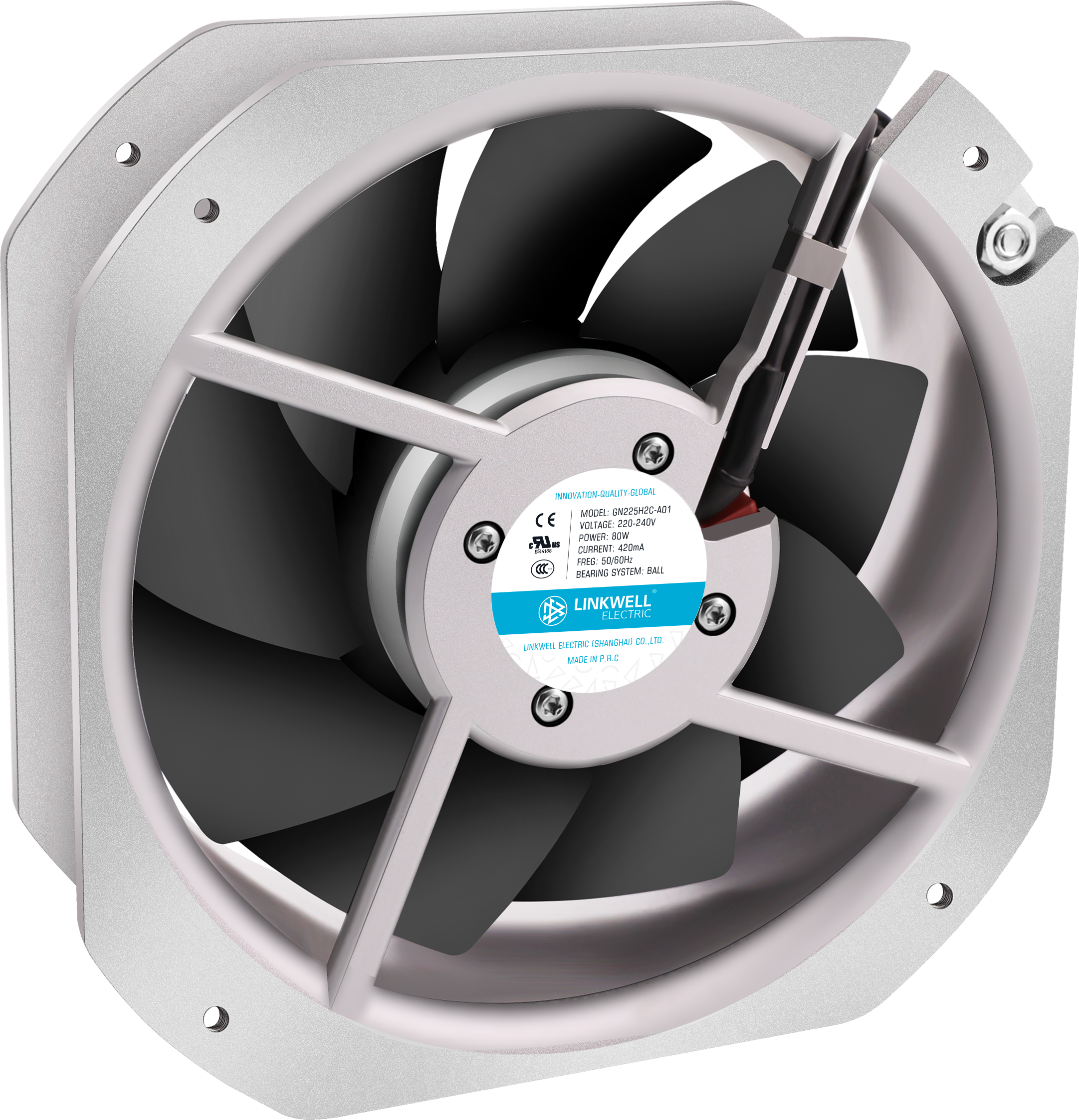

GN 225H

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	225X225X80mm	100V-125V 200V-240V	67/77W	0.68/0.65A 0.28/0.35A	50/60Hz	925/1030 m3/h	60dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

225X225X80mm

100V-125V

200V-240V

67/77W

0.68/0.65A

0.28/0.35A

50/60Hz

925/1030

m3/h

60dB

GN 280H

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	280X280X80mm	100V-125V 200V-240V	126/148W	1.20/1.30A 0.58/0.63A	50/60Hz	1865/1970 m3/h	68dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

280X280X80mm

100V-125V

200V-240V

126/148W

1.20/1.30A

0.58/0.63A

50/60Hz

1865/1970

m3/h

68dB

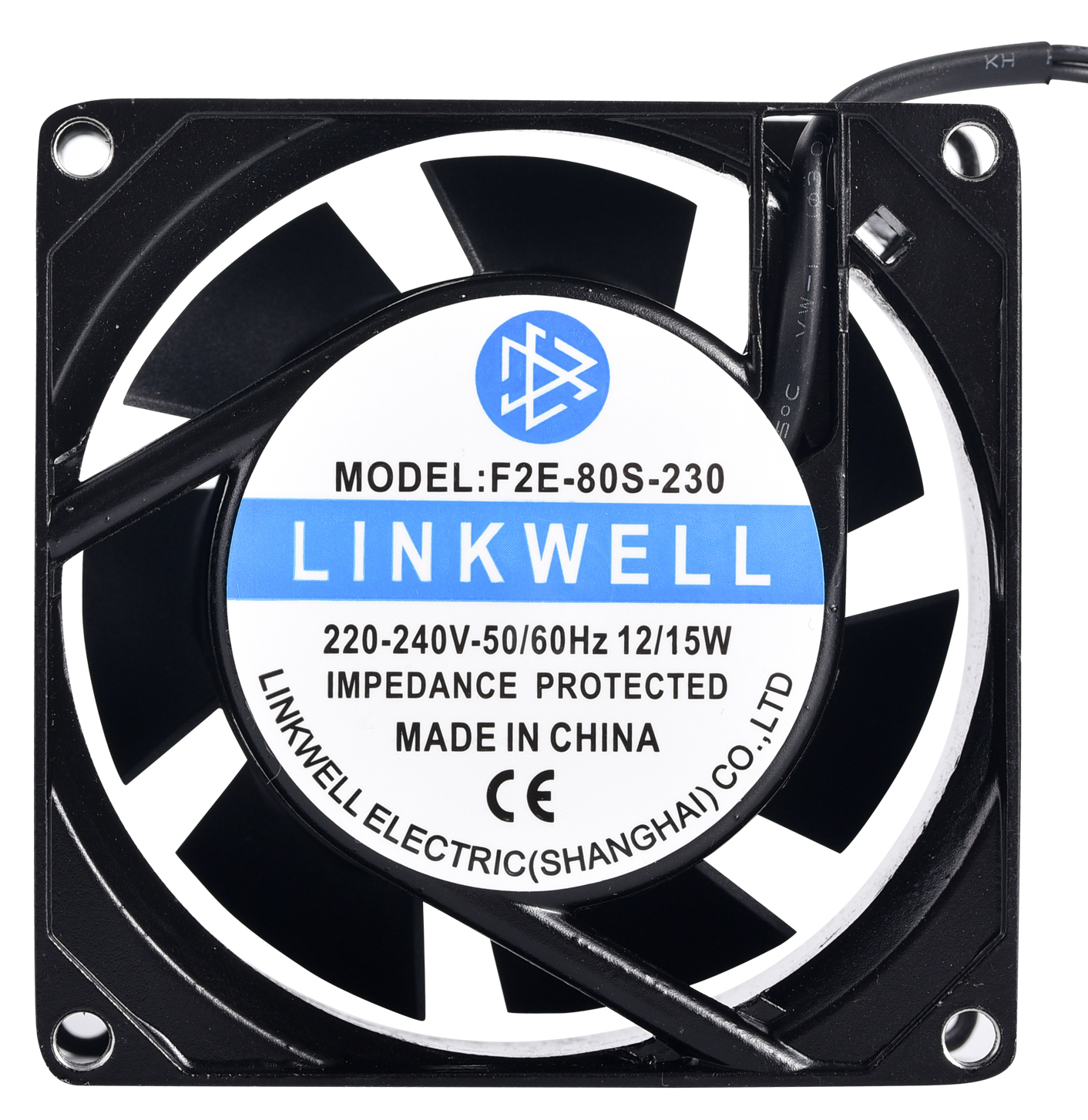

F2E 80S/B

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	80X80X38mm	100V-125V 200V-240V	12/10W	1.10/0.18A	50/60Hz	44/54 m3/h	32dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

80X80X38mm

100V-125V

200V-240V

12/10W

1.10/0.18A

50/60Hz

44/54

m3/h

32dB

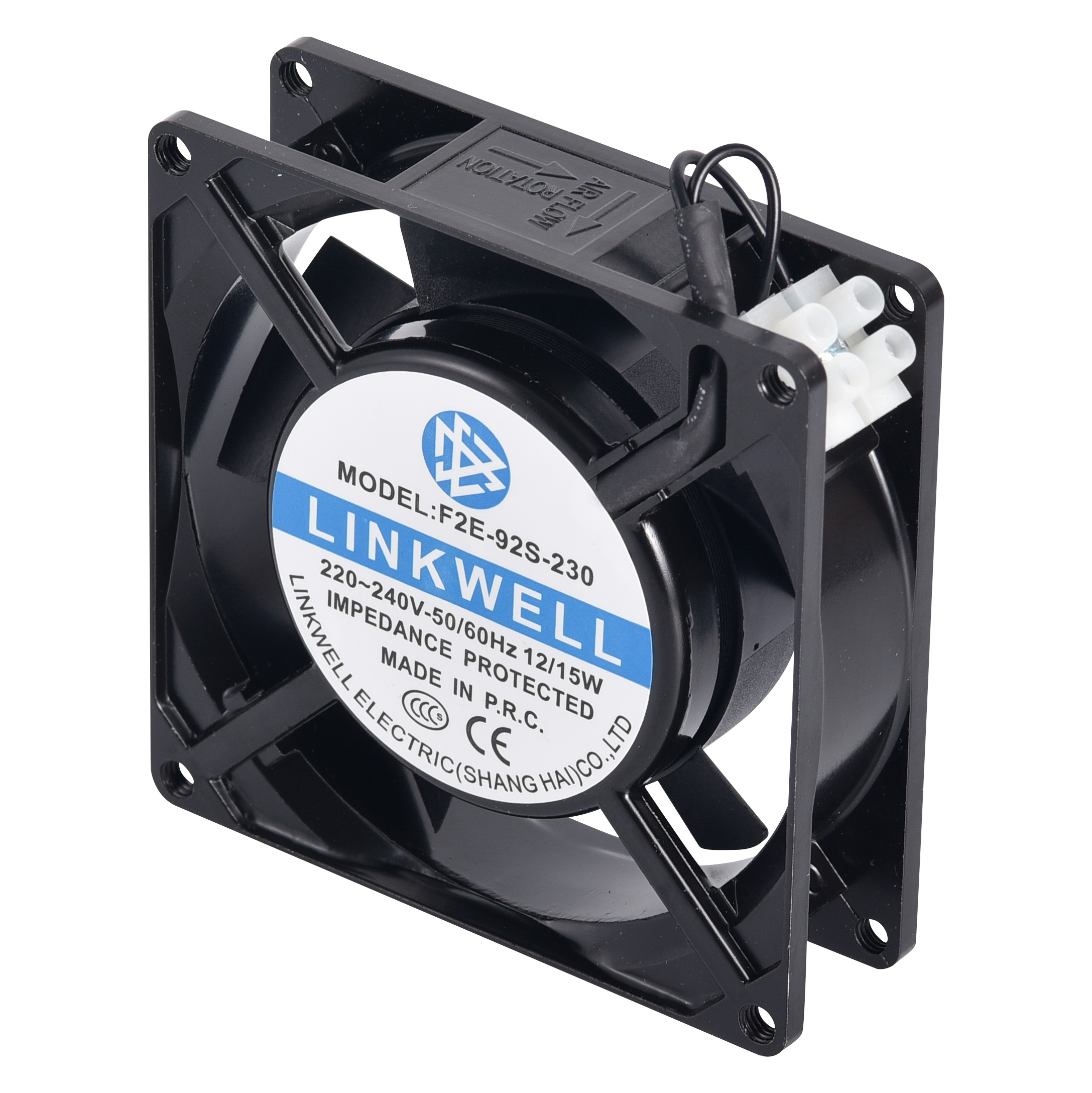

F2E 92S/B

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	92X92X25mm	100V-125V 200V-240V	13/12W	0.07/0.14A	50/60Hz	51/63 m3/h	32dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

92X92X25mm

100V-125V

200V-240V

13/12W

0.07/0.14A

50/60Hz

51/63

m3/h

32dB

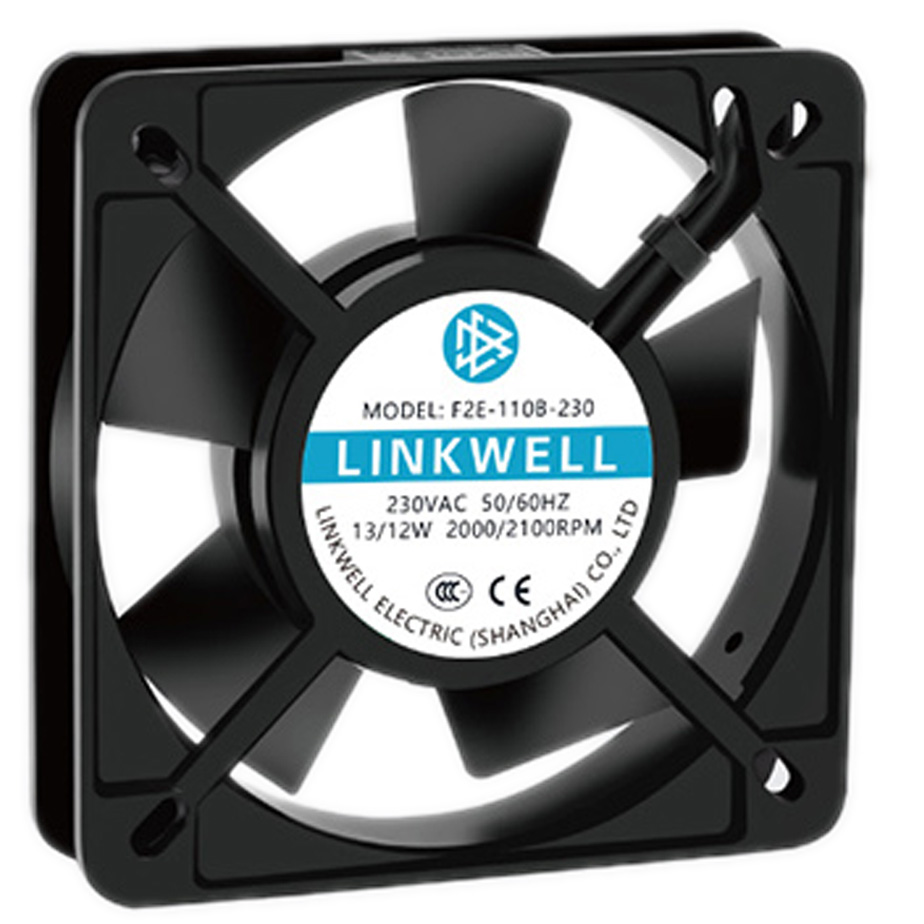

F2E 110S/B

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	110X110X25mm	100V-125V 200V-240V	13/12W	0.07/0.14A	50/60Hz	102/120 m3/h	36dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

110X110X25mm

100V-125V

200V-240V

13/12W

0.07/0.14A

50/60Hz

102/120

m3/h

36dB

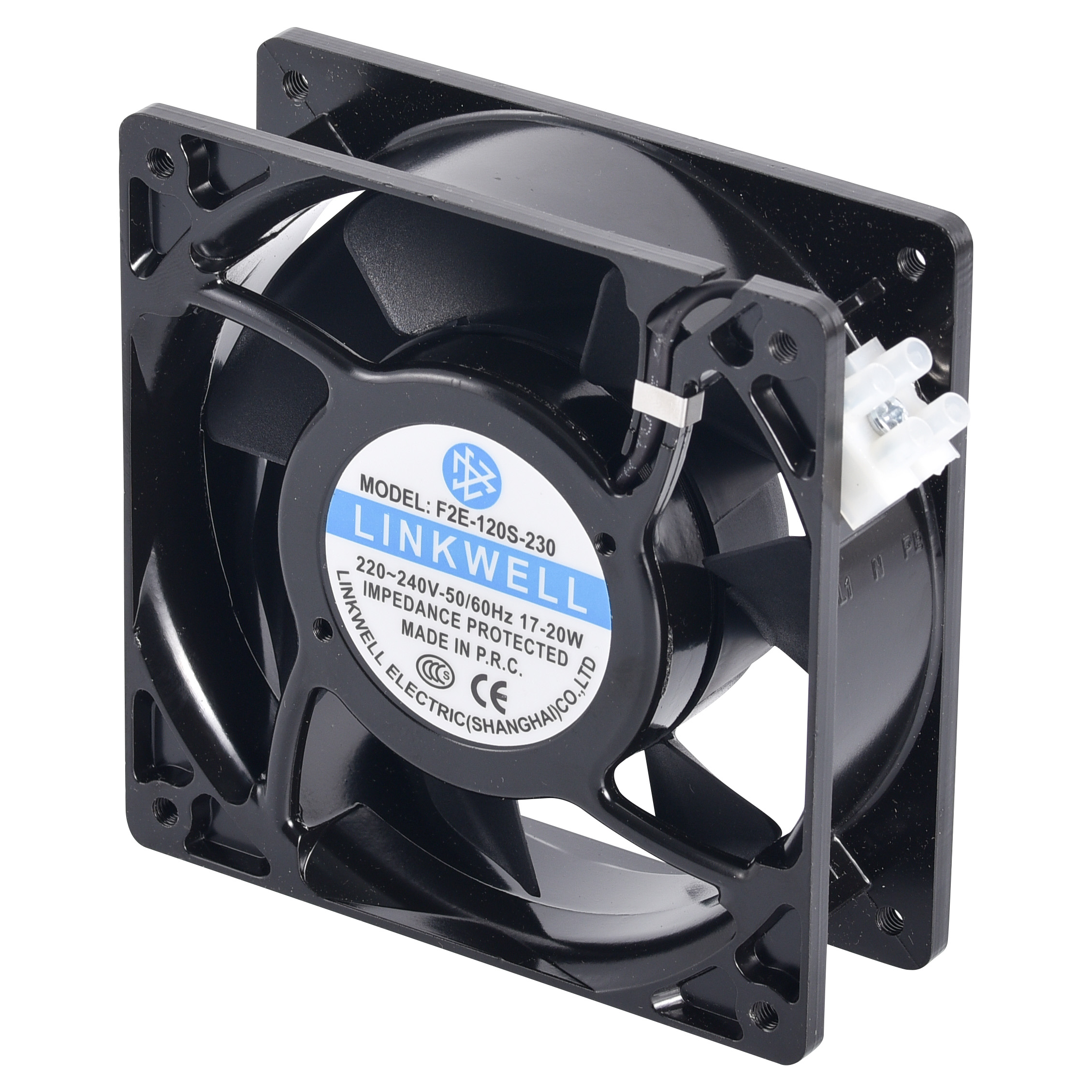

F2E 120S/B

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	120X120X38mm	100V-125V 200V-240V	19/18W	0.13/0.26A	50/60Hz	145/162 m3/h	42dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

120X120X38mm

100V-125V

200V-240V

19/18W

0.13/0.26A

50/60Hz

145/162

m3/h

42dB

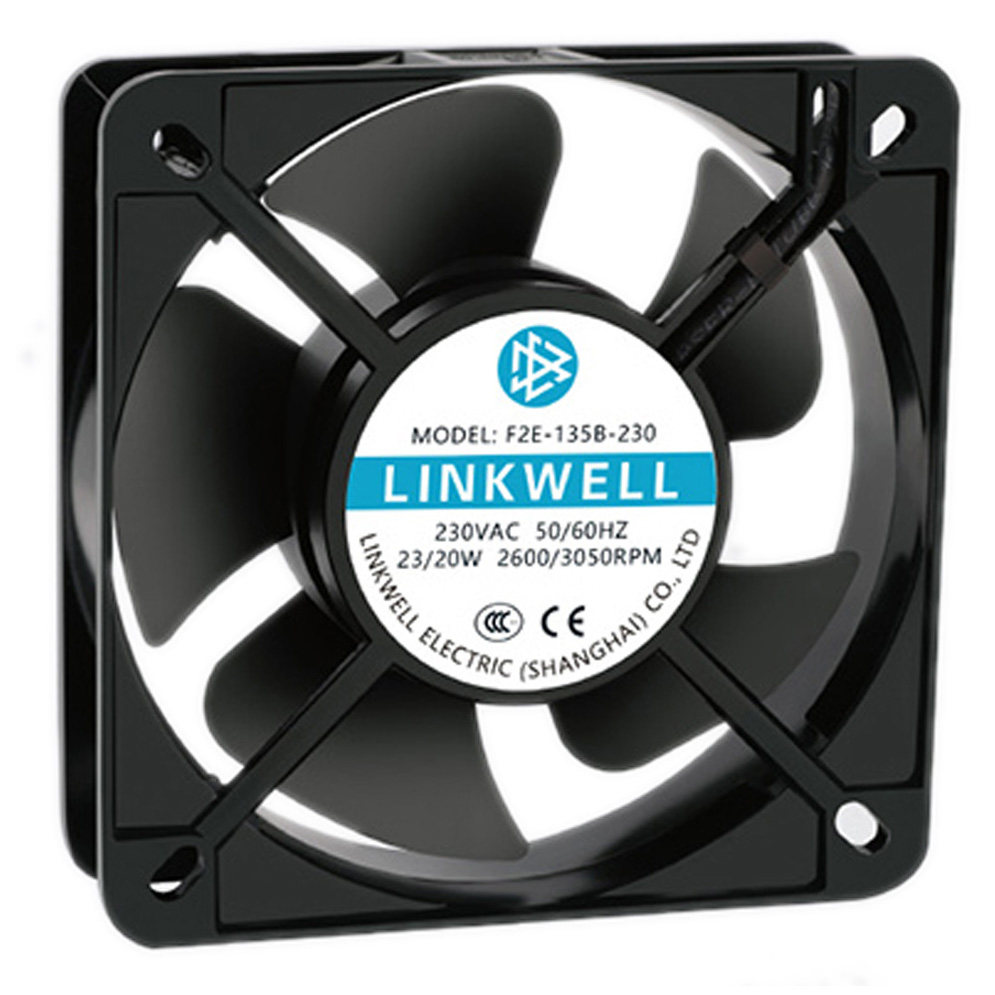

F2E 135S/B

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	135X135X38mm	100V-125V 200V-240V	23/20W	0.16/0.28A	50/60Hz	192/233 m3/h	42dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

135X135X38mm

100V-125V

200V-240V

23/20W

0.16/0.28A

50/60Hz

192/233

m3/h

42dB

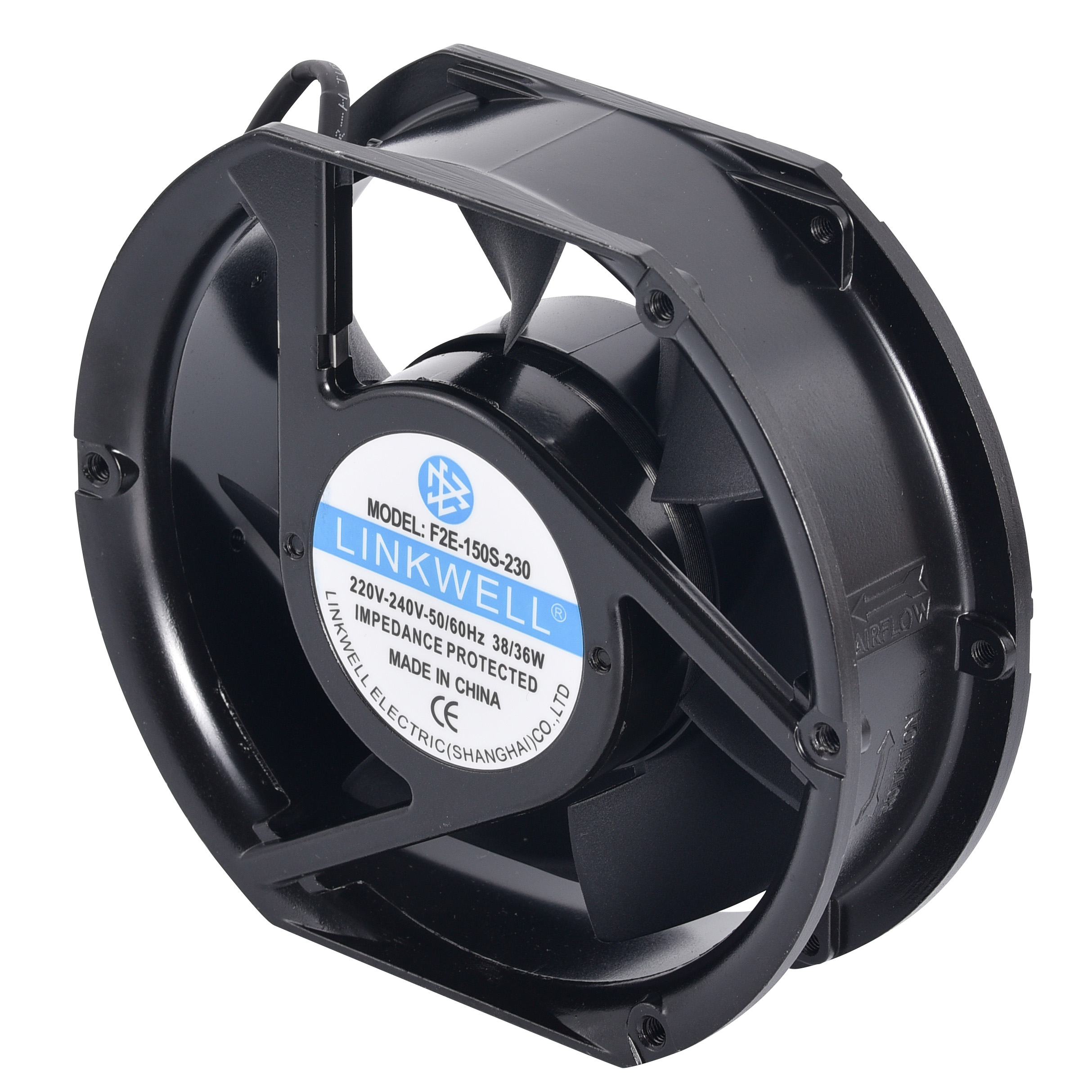

F2E 150S/B

Picture	Overall Dimensions	Rated Voltage	Power	Current	Frequency	Air volume	Noise
	172X150X51mm	100V-125V 200V-240V	36/34W	0.25/0.5A	50/60Hz	323/356 m3/h	56dB


Overall Dimensions

Rated Voltage

Power

Current

Frequency

Air volume

Noise

172X150X51mm

100V-125V

200V-240V

36/34W

0.25/0.5A

50/60Hz

323/356

m3/h

56dB
